MAX5901, MAX5900 - -100V SOT23 Simple Swapper Hot-Swap Controllers

Maxim Integrated

The MAX5901 by Maxim Integrated is a -100V SOT23 Simple Swapper Hot-Swap Controllers. Below is the official datasheet preview.

📥 Download Datasheet

MAX5901 -100V SOT23 Simple Swapper Hot-Swap Controllers by Maxim Integrated - Datasheet Preview — Official preview page of the **MAX5901** -100V SOT23 Simple Swapper Hot-Swap Controllers datasheet (Maxim Integrated).

Datasheet Details

Part number	MAX5901, MAX5900
Manufacturer	Maxim Integrated
File Size	286.30 KB
Description	-100V SOT23 Simple Swapper Hot-Swap Controllers
Datasheet	MAX5900_MaximIntegratedProducts.pdf
Note	This datasheet PDF includes multiple part numbers: MAX5901, MAX5900. Please refer to the document for exact specifications by model.

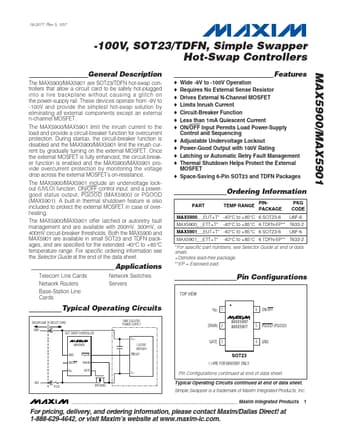

Additional preview pages of the MAX5901 datasheet.

MAX5901 Product details

Description

The MAX5900/MAX5901 are SOT23/TDFN hot-swap controllers that allow a circuit card to be safely hot-plugged into a live backplane without causing a glitch on the power-supply rail.

Features

Wide -9V to -100V Operation.
Requires No External Sense Resistor.
Drives External N-Channel MOSFET.
Limits Inrush Current.
Circuit-Breaker Function.
Less than 1mA Quiescent Current.
ON/OFF Input Permits Load Power-Supply Control and Sequencing.
Adjustable Undervoltage Lockout.
Power-Good Output with 100V Rating.
Latching or Automatic Retry Fault Management.
Thermal Shutdown Helps Protect the Exter.
