MAX4173H - High-Side Current-Sense Amplifier

Product Overview

Maxim Integrated

Part number	MAX4173H
Manufacturer	Maxim Integrated
File Size	204.35 KB
Description	High-Side Current-Sense Amplifier
Datasheet	MAX4173H Datasheet
Note	This datasheet PDF includes multiple part numbers: MAX4173H, MAX4173T. Please refer to the document for exact specifications by model.

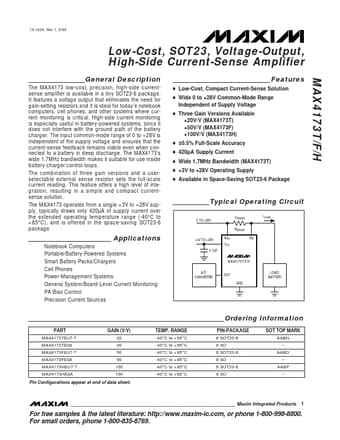

Additional preview pages of the MAX4173H datasheet.

The MAX4173 low-cost, precision, high-side currentsense amplifier is available in a tiny SOT23-6 package.

a voltage output that eliminates the need for gain-setting resistors and it is ideal for today’s notebook computers, cell phones, and other systems where current monitoring is critical. High-side current monitoring is especially useful in battery-powered systems, since it does not interfere with the ground path of the battery charger. The input common-mode range of 0 to +28V is independent of the supply voltage and ensures that the current-sense feedback remains viable even when connected to a b.
