MAX3751 - +3.3V / 2.125Gbps/1.0625Gbps Fibre Channel Port Bypass ICs

Download the MAX3751 datasheet PDF. This datasheet also covers the MAX3750 variant, as both devices belong to the same +3.3v / 2.125gbps/1.0625gbps fibre channel port bypass ics family and are provided as variant models within a single manufacturer datasheet.

Description

The MAX3750/MAX3751 are +3.3V, Fibre Channel port bypass ICs that include a high-speed multiplexer and output buffer stage for hot swapping a storage device.

These devices are optimized for use in a Fibre Channel arbitrated loop topology.

Features

  • o Single +3.3.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MAX3750_MaximIntegratedProducts.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
MAX3750 +3.3V / 2.125Gbps/1.0625Gbps Fibre Channel Port Bypass ICs Maxim
MAX3752 2.125Gbps / 3.3V Quad-Port Bypass with Repeater Maxim
MAX3754 1Gbps/2Gbps Fibre Channel Quad-Port Bypass ICs Maxim
max3701 2x Blue Laser Driver with Sample and Hold Maxim
MAX3735 2.7Gbps / Low-Power SFP Laser Drivers Maxim

Other Datasheets by Maxim Integrated (Analog Devices)

Part Number Description
MAX3755 1Gbps/2Gbps Fibre Channel Quad-Port Bypass ICs
MAX3735A Low-Power SFP Laser Driver
MAX3747B Low-Power SFP Limiting Amplifiers
MAX3748A Compact 155Mbps to 3.2Gbps Limiting Amplifier
MAX3765 1.25Gbps/2.5Gbps Limiting Amplifiers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

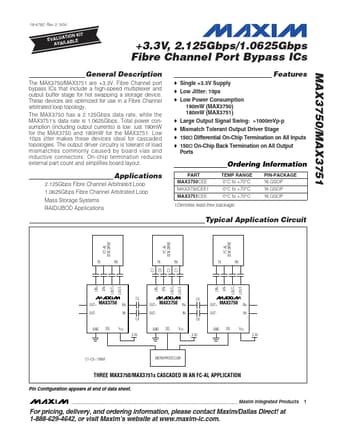

MAX3750/MAX3751 19-4792; Rev 1; 1/99 EVAALVUAAILTAIOBNLEKIT +3.3V, 2.125Gbps/1.0625Gbps Fibre Channel Port Bypass ICs General Description The MAX3750/MAX3751 are +3.3V, Fibre Channel port bypass ICs that include a high-speed multiplexer and output buffer stage for hot swapping a storage device. These devices are optimized for use in a Fibre Channel arbitrated loop topology. The MAX3750 has a 2.125Gbps data rate, while the MAX3751’s data rate is 1.0625Gbps. Total power consumption (including output currents) is low: just 190mW for the MAX3750 and 180mW for the MAX3751. Low 10ps jitter makes these devices ideal for cascaded topologies. The output driver circuitry is tolerant of load mismatches commonly caused by board vias and inductive connectors.
