MAX3486E, MAX3483E - 12Mbps and Slew-Rate-Limited True RS-485/RS-422 Transceivers

Maxim Integrated

The MAX3486E by Maxim Integrated is a 12Mbps and Slew-Rate-Limited True RS-485/RS-422 Transceivers. Below is the official datasheet preview.

📥 Download Datasheet

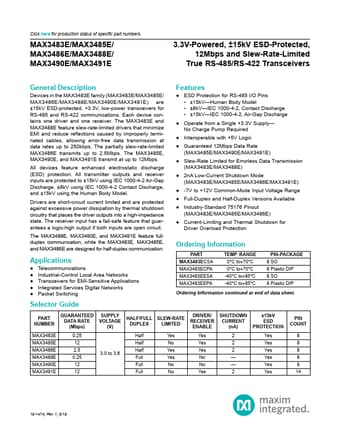

MAX3486E 12Mbps and Slew-Rate-Limited True RS-485/RS-422 Transceivers by Maxim Integrated - Datasheet Preview — Official preview page of the **MAX3486E** 12Mbps and Slew-Rate-Limited True RS-485/RS-422 Transceivers datasheet (Maxim Integrated).

Datasheet Details

Part number	MAX3486E, MAX3483E
Manufacturer	Maxim Integrated
File Size	2.55 MB
Description	12Mbps and Slew-Rate-Limited True RS-485/RS-422 Transceivers
Datasheet	MAX3483E-MaximIntegrated.pdf
Note	This datasheet PDF includes multiple part numbers: MAX3486E, MAX3483E. Please refer to the document for exact specifications by model.
Additional preview pages of the MAX3486E datasheet.

MAX3486E Product details

Description

Devices in the MAX3483E family (MAX3483E/MAX3485E/ MAX3486E/MAX3488E/MAX3490E/MAX3491E) are ±15kV ESD-protected, +3.3V, low-power transceivers for RS-485 and RS-422 communications.

Features

ESD Protection for RS-485 I/O Pins.
±15kV.
Human Body Model.
±8kV.
IEC 1000-4-2, Contact Discharge.
±15kV.
IEC 1000-4-2, Air-Gap Discharge.
Operate from a Single +3.3V Supply.
No Charge Pump Required.
Interoperable with +5V Logic.
Guaranteed 12Mbps Data Rate (MAX3485E/MAX3490E/MAX3491E).
Slew-Rate Limited for Errorless Data Transmission (MAX3483E/MAX3488E).
2nA Low-Current Shutdow.
