MAX31725 - Local Temperature Sensors

Maxim Integrated

The MAX31725 by Maxim Integrated is a Local Temperature Sensors. Below is the official datasheet preview.

Datasheet Details

Part number	MAX31725
Manufacturer	Maxim Integrated
File Size	476.87 KB
Description	Local Temperature Sensors
Datasheet	MAX31725-MaximIntegrated.pdf

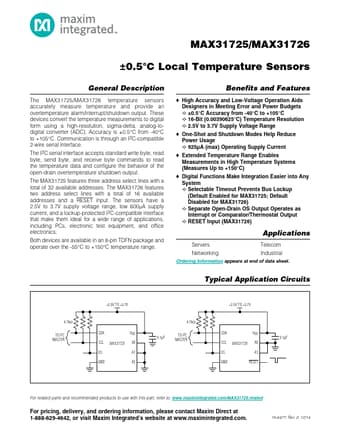

Additional preview pages of the MAX31725 datasheet.

The MAX31725/MAX31726 temperature sensors accurately measure temperature and provide an overtemperature alarm/interrupt/shutdown output.

three address select lines with a total of 32 available addresses. The MAX31726 features two address select lines with a total of 16 available addresses and a RESET input. The sensors have a 2.5V to 3.7V supply voltage range, low 600FA supply current, and a lockup-protected I2C-compatible interface that make them ideal for a wide range of.
