MAX2828

The MAX2828 is Single-/Dual-Band 802.11a/b/g World-Band Transceiver designed by Maxim Integrated.

Product Overview

Maxim Integrated

Part number	MAX2828
Manufacturer	Maxim Integrated
File Size	1.36 MB
Description	Single-/Dual-Band 802.11a/b/g World-Band Transceiver
Datasheet	MAX2828-MaximIntegrated.pdf

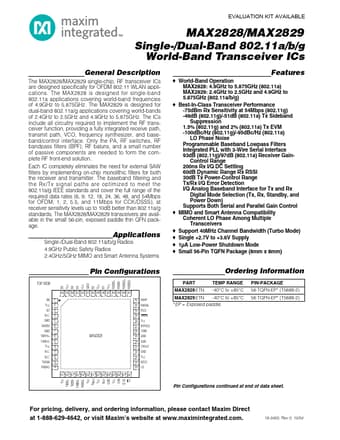

Additional preview pages of the MAX2828 datasheet.

The MAX2828/MAX2829 single-chip, RF transceiver ICs are designed specifically for OFDM 802.11 WLAN applications.

o World-Band Operation MAX2828: 4.9GHz to 5.875GHz (802.11a) MAX2829: 2.4GHz to 2.5GHz and 4.9GHz to 5.875GHz (802.11a/b/g) o Best-In-Class Transceiver Performance -75dBm Rx Sensitivity at 54Mbps (802.11g) -46dB (802.11g)/-51dB (802.11a) Tx Sideband Suppression 1.5% (802.11g) and 2% (802.11a) Tx EVM -100dBc/Hz (802.11g)/-95dBc/Hz (802.11a) LO Phase Noise Programmable Baseband Lowpass Filters Integrated PLL with 3-Wire Serial Interface 93dB (802.11g)/97dB (802.11a) Receiver GainControl Range 200n.
