MAX2613, MAX2612 - 40MHz to 4GHz Linear Broadband Amplifiers

Maxim Integrated

The MAX2613 by Maxim Integrated is a 40MHz to 4GHz Linear Broadband Amplifiers. Below is the official datasheet preview.

📥 Download Datasheet

MAX2613 40MHz to 4GHz Linear Broadband Amplifiers by Maxim Integrated - Datasheet Preview — Official preview page of the **MAX2613** 40MHz to 4GHz Linear Broadband Amplifiers datasheet (Maxim Integrated).

Datasheet Details

Part number	MAX2613, MAX2612
Manufacturer	Maxim Integrated
File Size	623.77 KB
Description	40MHz to 4GHz Linear Broadband Amplifiers
Datasheet	MAX2612-MaximIntegrated.pdf
Note	This datasheet PDF includes multiple part numbers: MAX2613, MAX2612. Please refer to the document for exact specifications by model.

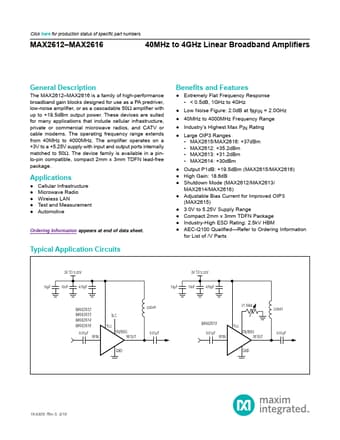

Additional preview pages of the MAX2613 datasheet.

MAX2613 Product details

Description

The MAX2612 MAX2616 is a family of high-performance broadband gain blocks designed for use as a PA predriver, low-noise amplifier, or as a cascadable 50I amplifier with up to +19.5dBm output power.

Features

Extremely Flat Frequency Response.
< 0.5dB, 1GHz to 4GHz.
Low Noise Figure: 2.0dB at fRFIN = 2.0GHz.
40MHz to 4000MHz Frequency Range.
Industry’s Highest Max PIN Rating.
Large OIP3 Ranges.
MAX2615/MAX2616: +37dBm.
MAX2612: +35.2dBm.
MAX2613: +31.2dBm.
MAX2614: +30dBm.
Output P1dB: +19.5dBm (MAX2615/MAX2616).
High Gain: 18.6dB.
Shutdown Mode (MAX2612/MAX2613/ MAX2614/MAX26.
