MAX25611B, MAX25611A - Automotive High-Voltage HB LED Controller

Maxim Integrated

The MAX25611B by Maxim Integrated is a Automotive High-Voltage HB LED Controller. Below is the official datasheet preview.

📥 Download Datasheet

MAX25611B Automotive High-Voltage HB LED Controller by Maxim Integrated - Datasheet Preview — Official preview page of the **MAX25611B** Automotive High-Voltage HB LED Controller datasheet (Maxim Integrated).

Datasheet Details

Part number	MAX25611B, MAX25611A
Manufacturer	Maxim Integrated
File Size	1.93 MB
Description	Automotive High-Voltage HB LED Controller
Datasheet	MAX25611A-MaximIntegrated.pdf
Note	This datasheet PDF includes multiple part numbers: MAX25611B, MAX25611A. Please refer to the document for exact specifications by model.

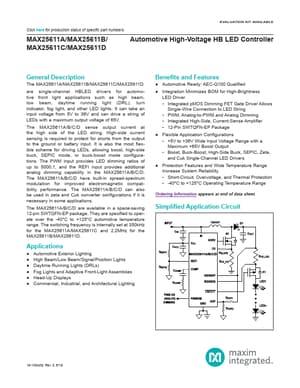

Additional preview pages of the MAX25611B datasheet.

MAX25611B Product details

Description

The MAX25611A/MAX25611B/MAX25611C/MAX25611D are single-channel HBLED drivers for automotive front light applications such as high beam, low beam, daytime running light (DRL), turn indicator, fog light, and other LED lights.It can take an input voltage from 5V to 36V and can drive a string of LEDs with a maximum output voltage of 65V.The MAX25611A/B/C/D sense output current at the high side of the LED string.High-side current sensing is required to protect for shorts from the output to the gro

Features

Automotive Ready: AEC-Q100 Qualified.
Integration Minimizes BOM for High-Brightness LED Driver.
Integrated pMOS Dimming FET Gate Driver Allows Single-Wire Connection to LED String.
PWM, Analog-to-PWM and Analog Dimming.
Integrated High-Side, Current-Sense Amplifier.
12-Pin SWTQFN-EP Package.
Flexible.
