MAX1994 - Dual Step-Down Controllers Plus Linear Regulator Controller

Download the MAX1994 datasheet PDF. This datasheet also covers the MAX1816 variant, as both devices belong to the same dual step-down controllers plus linear regulator controller family and are provided as variant models within a single manufacturer datasheet.

Description

The MAX1816/MAX1994 are dual step-down controllers for notebook computer applications.

BUCK1 is a CPU core regulator with dynamically adjustable output, ultrafast transient response, high DC accuracy, and high efficiency.

BUCK2 is an adjustable step-down regulator for I/O and memory supplies.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MAX1816_MaximIntegratedProducts.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
MAX199 Multi-Range (4V / 2V / +4V / +2V) / +5V Supply / 12-Bit DAS with 8+4 Bus Interface Maxim
MAX1997 Quintuple/Triple-Output TFT LCD Power Supplies Maxim
MAX1998 Quintuple/Triple-Output TFT LCD Power Supplies Maxim
MAX1999 High-Efficiency / Quad Output / Main Power- Supply Controllers for Notebook Computers Maxim
MAX19993 1200MHz To 1700MHz Downconversion Mixer Maxim Integrated Products

Other Datasheets by Maxim Integrated (Analog Devices)

Part Number Description
MAX1992 Quick-PWM Step-Down Controllers
MAX1993 Quick-PWM Step-Down Controllers
MAX19005 200Mbps ATE Drivers/Comparators
MAX1920 400mA Step-Down DC-DC Converters
MAX1921 400mA Step-Down DC-DC Converters

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

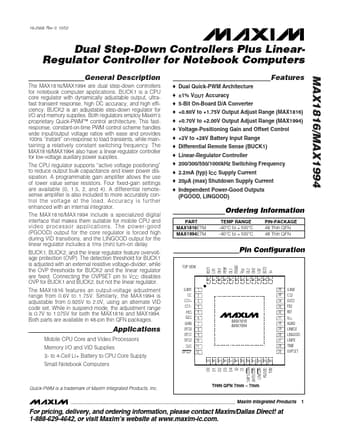

MAX1816/MAX1994 19-2569; Rev 0; 10/02 Dual Step-Down Controllers Plus LinearRegulator Controller for Notebook Computers General Description The MAX1816/MAX1994 are dual step-down controllers for notebook computer applications. BUCK1 is a CPU core regulator with dynamically adjustable output, ultrafast transient response, high DC accuracy, and high efficiency. BUCK2 is an adjustable step-down regulator for I/O and memory supplies. Both regulators employ Maxim’s proprietary Quick-PWM™ control architecture. This fastresponse, constant-on-time PWM control scheme handles wide input/output voltage ratios with ease and provides 100ns “instant” on-response to load transients, while maintaining a relatively constant switching frequency.
