MAX17523 - LCD

Product Overview

Maxim Integrated

Datasheet Details

Part number	MAX17523
Manufacturer	Maxim Integrated
File Size	495.25 KB
Description	LCD
Datasheet	MAX17523 Datasheet

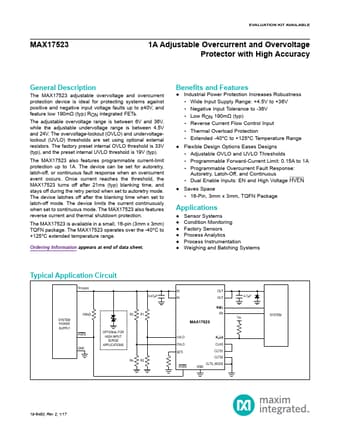

Additional preview pages of the MAX17523 datasheet.

Product details

Description

The MAX17523 adjustable overvoltage and overcurrent protection device is ideal for protecting systems against positive and negative input voltage faults up to ±40V, and feature low 190mΩ (typ) RON integrated FETs.

Features

programmable current-limit protection up to 1A. The device can be set for autoretry, latch-off, or continuous fault response when an overcurrent event occurs. Once current reaches the threshold, the MAX17523 turns off after 21ms (typ) blanking time, and stays off during the retry pe.
