MAX16133, MAX16132 - Single/Dual/Triple/Quad-Voltage uP Supervisors

Maxim Integrated

The MAX16133 by Maxim Integrated is a Single/Dual/Triple/Quad-Voltage uP Supervisors. Below is the official datasheet preview.

📥 Download Datasheet

MAX16133 Single/Dual/Triple/Quad-Voltage uP Supervisors by Maxim Integrated - Datasheet Preview — Official preview page of the **MAX16133** Single/Dual/Triple/Quad-Voltage uP Supervisors datasheet (Maxim Integrated).

Datasheet Details

Part number	MAX16133, MAX16132
Manufacturer	Maxim Integrated
File Size	576.80 KB
Description	Single/Dual/Triple/Quad-Voltage uP Supervisors
Datasheet	MAX16132-MaximIntegrated.pdf
Note	This datasheet PDF includes multiple part numbers: MAX16133, MAX16132. Please refer to the document for exact specifications by model.

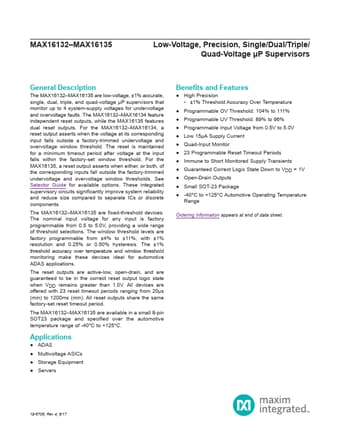

Additional preview pages of the MAX16133 datasheet.

MAX16133 Product details

Description

The MAX16132 MAX16135 are low-voltage, ±1% accurate, single, dual, triple, and quad-volta ge μP supervisors that monitor up to 4 system-supply voltages for undervoltage and overvoltage faults. MAX16134 feature independent reset outputs, while the MAX16135

Features

dual reset outputs. For the MAX16132.
MAX16134, a reset output asserts when the voltage at its corresponding input falls outside a factory-trimmed undervoltage and overvoltage window threshold. The reset is maintained for a minimum timeout period after voltage at the input falls within the factory-set window threshold. For the MAX16135, a reset output asserts when either, or both, of the corresponding inputs fall outside the factory-trimmed undervoltage and overvoltage window thresholds.
