MAX14882 - 5k VRMS Isolated CAN Transceiver

Product Overview

Maxim Integrated

Datasheet Details

Part number	MAX14882
Manufacturer	Maxim Integrated
File Size	583.29 KB
Description	5k VRMS Isolated CAN Transceiver
Datasheet	MAX14882 Datasheet

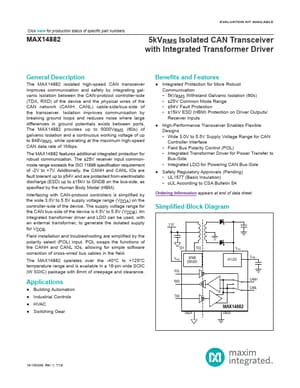

Additional preview pages of the MAX14882 datasheet.

Product details

Description

The MAX14882 isolated high-speed CAN transceiver improves communication and safety by integrating galvanic isolation between the CAN-protocol controller-side (TDX, RXD) of the device and the physical wires of the CAN network (CANH, CANL) cable-side/bus-side of the transceiver.

Features

additional integrated protection for robust communication. The ±25V receiver input commonmode range exceeds the ISO 11898 specification requirement of -2V to +7V. Additionally, the CANH and CANL IOs are fault tolerant up to ±54V and are protected from electrostatic discharge (ESD) up to ±15kV to GNDB on the bus-side, as specified by the Human Body Model (HBM). Interfacing with CAN-protocol controllers is simplified by the wide 3.0V to 5.5V supply voltage range (VDDA) on the controller-side of th.
