MAX13085E - RS-485/RS-422 Transceiver

Product Overview

Maxim Integrated

Part number	MAX13085E
Manufacturer	Maxim Integrated
File Size	630.91 KB
Description	RS-485/RS-422 Transceiver
Datasheet	MAX13085E Datasheet
Additional preview pages of the MAX13085E datasheet.

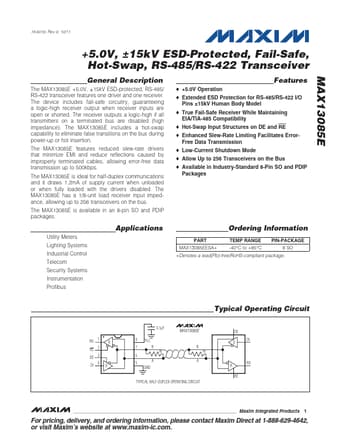

The MAX13085E +5.0V, ±15kV ESD-protected, RS-485/ RS-422 transceiver

one driver and one receiver. The device includes fail-safe circuitry, guaranteeing a logic-high receiver output when receiver inputs are open or shorted. The receiver outputs a logic-high if all transmitters on a terminated bus are disabled (high impedance). The MAX13085E includes a hot-swap capability to eliminate false transitions on the bus during power-up or hot insertion. The MAX13085E features reduced slew-rate drivers that minimize EMI and reduce reflections caused by improperly terminate.
