MAX11156 - SAR ADC

Description

The MAX11156 18-bit, 500ksps, SAR ADC offers excellent AC and DC performance with true bipolar input range, small size, and internal reference.

The MAX11156 measures a ±5V (10VP-P) input range while operating from a single 5V supply.

Features

  • High DC/AC Accuracy Improves Measurementuality.
  • 18-Bit Resolution with No Missing Codes.
  • 500ksps Throughput Rate Without Pipeline Delay/ Latency.
  • 94.6dB SNR and -101.4dB THD at 10kHz.
  • 1.6 LSBRMS Transition Noise.
  • ±0.5 LSB DNL (typ) and ±2.8 LSB INL (typ).
  • Highly Integrated ADC Saves Cost and Space.
  • 6ppm/°C (typ) Internal Reference.
  • Internal Reference Buffer.
  • ±5V Bipolar Analog Input Range.
  • Wide Supply Range a.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MAX1115 Single-Supply / Low-Power / Serial 8-Bit ADCs Maxim
MAX111 Low-Cost / 2-Channel / 14-Bit Serial ADCs Maxim
MAX11102 Serial 12-/10-/8-Bit ADCs Maxim Integrated Products
MAX11103 Serial 12-/10-/8-Bit ADCs Maxim Integrated Products
MAX11105 Serial 12-/10-/8-Bit ADCs Maxim Integrated Products

Other Datasheets by Maxim Integrated (Analog Devices)

Part Number Description
MAX11150 SAR ADC
MAX11152 SAR ADC
MAX11154 SAR ADC
MAX11158 SAR ADC
MAX1110 Serial 8-Bit ADCs

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

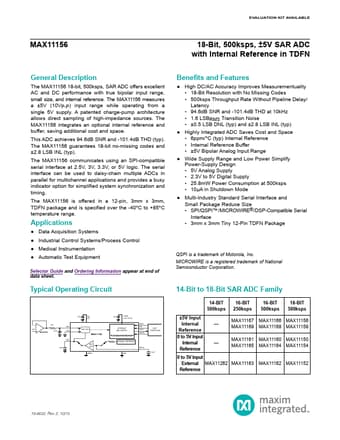

EVALUATION KIT AVAILABLE MAX11156 18-Bit, 500ksps, ±5V SAR ADC with Internal Reference in TDFN General Description The MAX11156 18-bit, 500ksps, SAR ADC offers excellent AC and DC performance with true bipolar input range, small size, and internal reference. The MAX11156 measures a ±5V (10VP-P) input range while operating from a single 5V supply. A patented charge-pump architecture allows direct sampling of high-impedance sources. The MAX11156 integrates an optional internal reference and buffer, saving additional cost and space. This ADC achieves 94.6dB SNR and -101.4dB THD (typ). The MAX11156 guarantees 18-bit no-missing codes and ±2.8 LSB INL (typ). The MAX11156 communicates using an SPI-compatible serial interface at 2.5V, 3V, 3.3V, or 5V logic.
