DS1511, DS1501 - Y2K-Compliant Watchdog Real-Time Clocks

Maxim Integrated

The DS1511 by Maxim Integrated is a Y2K-Compliant Watchdog Real-Time Clocks. Below is the official datasheet preview.

📥 Download Datasheet

DS1511 Y2K-Compliant Watchdog Real-Time Clocks by Maxim Integrated - Datasheet Preview — Official preview page of the **DS1511** Y2K-Compliant Watchdog Real-Time Clocks datasheet (Maxim Integrated).

Datasheet Details

Part number	DS1511, DS1501
Manufacturer	Maxim Integrated
File Size	438.28 KB
Description	Y2K-Compliant Watchdog Real-Time Clocks
Datasheet	DS1501-MaximIntegrated.pdf
Note	This datasheet PDF includes multiple part numbers: DS1511, DS1501. Please refer to the document for exact specifications by model.

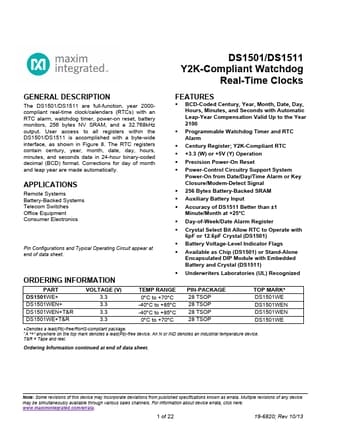

Additional preview pages of the DS1511 datasheet.

DS1511 Product details

Description

The DS1501/DS1511 are full-function, year 2000compliant real-time clock/calendars (RTCs) with an RTC alarm, watchdog timer, power-on reset, battery monitors, 256 bytes NV SRAM, and a 32.768kHz output.

Features

BCD-Coded Century, Year, Month, Date, Day, Hours, Minutes, and Seconds with Automatic Leap-Year Compensation Valid Up to the Year 2100.
Programmable Watchdog Timer and RTC Alarm.
Century Register; Y2K-Compliant RTC.
+3.3 (W) or +5V (Y) Operation.
Precision Power-On Reset.
Power-Control Circuitry Support System Power-On from Date/Day/Time Alarm or Key Closure/Modem-Detect Signal.
256 Bytes Battery-Backed SRAM.
Auxiliary Battery Input.
Accuracy of DS15.
