MAX6870 - EEPROM-Programmable Hex/Quad Power-Supply Sequencers/Supervisors

Maxim Integrated Products

The MAX6870 by Maxim Integrated Products is a EEPROM-Programmable Hex/Quad Power-Supply Sequencers/Supervisors. Below is the official datasheet preview.

📥 Download Datasheet

MAX6870 EEPROM-Programmable Hex/Quad Power-Supply Sequencers/Supervisors by Maxim Integrated Products - Datasheet Preview — Official preview page of the **MAX6870** EEPROM-Programmable Hex/Quad Power-Supply Sequencers/Supervisors datasheet (Maxim Integrated Products).

Datasheet Details

Part number	MAX6870
Manufacturer	Maxim Integrated Products
File Size	668.21 KB
Description	EEPROM-Programmable Hex/Quad Power-Supply Sequencers/Supervisors
Datasheet	MAX6870_MaximIntegratedProducts.pdf

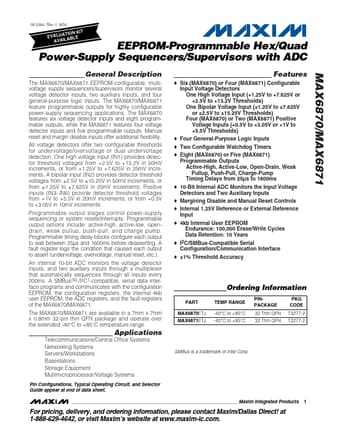

Additional preview pages of the MAX6870 datasheet.

MAX6870 Product details

Description

The MAX6870/MAX6871 EEPROM-configurable, multivoltage supply sequencers/supervisors monitor several voltage detector inputs, two auxiliary inputs, and four general-purpose logic inputs.

Features

six voltage detector inputs and eight programmable outputs, while the MAX6871 features four voltage detector inputs and five programmable outputs. Manual reset and margin disable inputs offer additional flexibility. All voltage detectors offer two configurable thresholds for undervoltage/overvoltage or dual undervoltage detection. One high voltage input (IN1) provides detector threshold voltages from +2.5V to +13.2V in 50mV increments, or from +1.25V to +7.625V in 25mV increments. A bipolar inpu.
