MAX5495 - 10-Bit - Dual - Nonvolatile/ Linear-Taper Digital Potentiometers

Product Overview

Maxim Integrated Products

Datasheet Details

Part number	MAX5495
Manufacturer	Maxim Integrated Products
File Size	678.00 KB
Description	10-Bit - Dual - Nonvolatile/ Linear-Taper Digital Potentiometers
Datasheet	MAX5495 Datasheet
Note	This datasheet PDF includes multiple part numbers: MAX5495, MAX5494. Please refer to the document for exact specifications by model.

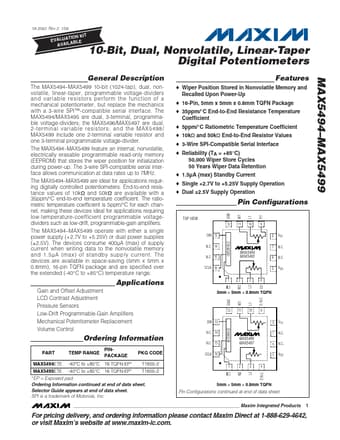

Additional preview pages of the MAX5495 datasheet.

Product details

Description

The MAX5494 MAX5499 10-bit (1024-tap), dual, nonvolatile, linear-taper, programmable voltage-dividers and variable resistors perform the function of a mechanical potentiometer, but replace the mechanics with a 3-wire SPI™-compatible serial interface.

Features

Wiper Position Stored in Nonvolatile Memory and Recalled Upon Power-Up.
16-Pin, 5mm x 5mm x 0.8mm TQFN Package.
35ppm/°C End-to-End Resistance Temperature Coefficient.
5ppm/°C Ratiometric Temperature Coefficient.
10kΩ and 50kΩ End-to-End Resistor Values.
3-Wire SPI-Compatible Serial Interface.
Reliability (TA = +85°C) 50,000 Wiper Store Cycles 50 Years Wiper Data Retention.
1.5µA (max) Standby Current.
Single +2.7V.
