MAX5484, MAX5481 - 10-Bit / Nonvolatile - Linear-Taper Digital Potentiometers

Maxim Integrated Products

The MAX5484 by Maxim Integrated Products is a 10-Bit / Nonvolatile - Linear-Taper Digital Potentiometers. Below is the official datasheet preview.

📥 Download Datasheet

MAX5484 10-Bit / Nonvolatile - Linear-Taper Digital Potentiometers by Maxim Integrated Products - Datasheet Preview — Official preview page of the **MAX5484** 10-Bit / Nonvolatile - Linear-Taper Digital Potentiometers datasheet (Maxim Integrated Products).

Datasheet Details

Part number	MAX5484, MAX5481
Manufacturer	Maxim Integrated Products
File Size	926.50 KB
Description	10-Bit / Nonvolatile - Linear-Taper Digital Potentiometers
Datasheet	MAX5481_MaximIntegratedProducts.pdf
Note	This datasheet PDF includes multiple part numbers: MAX5484, MAX5481. Please refer to the document for exact specifications by model.

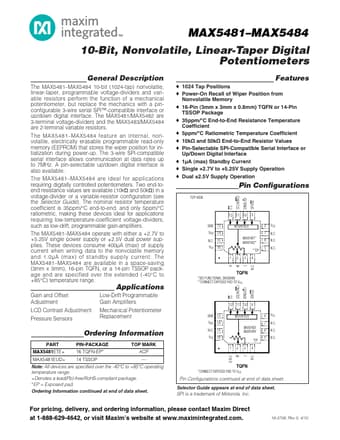

Additional preview pages of the MAX5484 datasheet.

MAX5484 Product details

Description

The MAX5481 MAX5484 10-bit (1024-tap) nonvolatile, linear-taper, programmable voltage-dividers and variable resistors perform the function of a mechanical potentiometer, but replace the mechanics with a pinconfigurable 3-wire serial SPI™-compatible interface or up/down digital interface. MAX5484 feature an internal, nonvolatile, electrically erasable programm

Features

1024 Tap Positions.
Power-On Recall of Wiper Position from Nonvolatile Memory.
16-Pin (3mm x 3mm x 0.8mm) TQFN or 14-Pin TSSOP Package.
35ppm/°C End-to-End Resistance Temperature Coefficient.
5ppm/°C Ratiometric Temperature Coefficient.
10kΩ and 50kΩ End-to-End Resistor Values.
Pin-Selectable SPI-Compatible Serial Interface or Up/Down Digital Interface.
1µA (max) Standby Current.
Single +2.7V to +5.25V Supply Opera.
