MAX5083 - 1.5A / 40V / MAXPower Step-Down DC-DC Converters

Product Overview

Maxim Integrated Products

📥 Download Datasheet

MAX5083 1.5A / 40V / MAXPower Step-Down DC-DC Converters by Maxim Integrated Products - Datasheet Preview — Datasheet preview – MAX5083

Datasheet Details

Part number	MAX5083
Manufacturer	Maxim Integrated Products
File Size	624.89 KB
Description	1.5A / 40V / MAXPower Step-Down DC-DC Converters
Datasheet	MAX5083 Datasheet
Note	This datasheet PDF includes multiple part numbers: MAX5083, MAX5082. Please refer to the document for exact specifications by model.

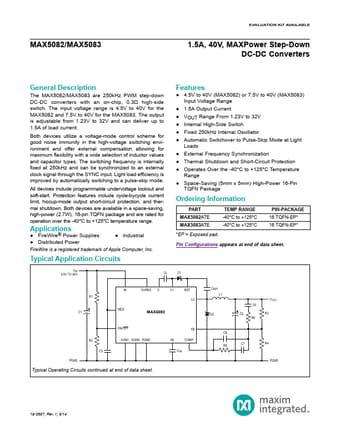

Additional preview pages of the MAX5083 datasheet.

Product details

Description

The MAX5082/MAX5083 are 250kHz PWM step-down DC-DC converters with an on-chip, 0.3 Ω high-side switch.

Features

include cycle-bycycle current limit, hiccup-mode output short-circuit protection, and thermal shutdown. Both devices are available in a space-saving, high-power (2.7W), 16-pin TQFN package and are rated for operation over the -40°C to +125°C temperature range. Features.
4.5V to 40V (MAX5082) or 7.5V to 40V (MAX5083) Input Voltage Range.
1.5A Output Current.
VOUT Range From 1.23V to 32V.
Internal High-Side Switch.
Fixed 250kHz Internal Oscillator.
