MAX2665 - VHF/UHF Low-Noise Amplifiers

Download the MAX2665 datasheet PDF. This datasheet also covers the MAX2664 variant, as both devices belong to the same vhf/uhf low-noise amplifiers family and are provided as variant models within a single manufacturer datasheet.

General Description

The MAX2664 and MAX2665 are ultra-compact LNAs for VHF/UHF applications.

These devices incorporate a broadband LNA with an integrated bypass switch.

The MAX2664 covers the UHF frequency range from 470MHz to 860MHz, and the MAX2665 covers the VHF frequency range from 75MHz to 230MHz.

Key Features

  • UHF and VHF Frequency Range.
  • MAX2664: 470MHz to 860MHz.
  • MAX2665: 75MHz to 230MHz.
  • Low Noise Figure.
  • MAX2664: 1.2dB.
  • MAX2665: 1.1dB.
  • High Gain: 15dB.
  • Zero-Power Bypass Mode.
  • Single +2.4V to +3.5V Supply Voltage.
  • Low Current: 3.3mA.
  • Small Footprint: 0.8mm x 0.8mm.
  • Thin Profile: 0.64mm Ordering Information PART TEMP RANGE PIN-.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MAX2664_MaximIntegratedProducts.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
MAX266 Pin and Resistor Programmed Universal Active Filters Maxim
MAX2660 400MHz to 2.5GHz Upconverter Mixers Maxim
MAX2661 400MHz to 2.5GHz Upconverter Mixers Maxim
MAX2663 400MHz to 2.5GHz Upconverter Mixers Maxim
MAX2667 GPS/GNSS Ultra-Low-Noise-Figure LNAs Maxim Integrated

Other Datasheets by Maxim Integrated (Analog Devices)

Part Number Description
MAX2664 VHF/UHF Low-Noise Amplifiers
MAX2622 Monolithic Voltage-Controlled Oscillators
MAX2623 Monolithic Voltage-Controlled Oscillators
MAX2624 (MAX2622 - MAX2624) Monolithic Voltage-Controlled Oscillators
MAX2634 315MHz/433MHz Low-Noise Amplifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

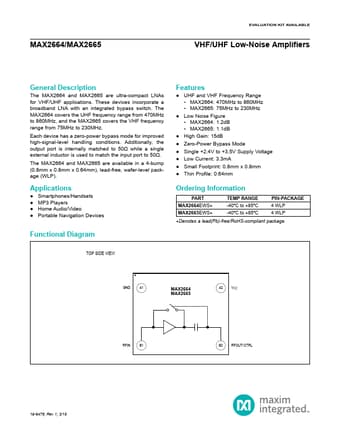

MAX2664/MAX2665 EVALUATION KIT AVAILABLE VHF/UHF Low-Noise Amplifiers General Description The MAX2664 and MAX2665 are ultra-compact LNAs for VHF/UHF applications. These devices incorporate a broadband LNA with an integrated bypass switch. The MAX2664 covers the UHF frequency range from 470MHz to 860MHz, and the MAX2665 covers the VHF frequency range from 75MHz to 230MHz. Each device has a zero-power bypass mode for improved high-signal-level handling conditions. Additionally, the output port is internally matched to 50Ω while a single external inductor is used to match the input port to 50Ω. The MAX2664 and MAX2665 are available in a 4-bump (0.8mm x 0.8mm x 0.64mm), lead-free, wafer-level package (WLP).
