MAX17599 - (MAX17598 / MAX17599) Active Clamp Current-Mode PWM Controllers

Product Overview

Maxim Integrated Products

Datasheet Details

Part number	MAX17599
Manufacturer	Maxim Integrated Products
File Size	815.84 KB
Description	(MAX17598 / MAX17599) Active Clamp Current-Mode PWM Controllers
Datasheet	MAX17599 Datasheet
Note	This datasheet PDF includes multiple part numbers: MAX17599, MAX17598. Please refer to the document for exact specifications by model.

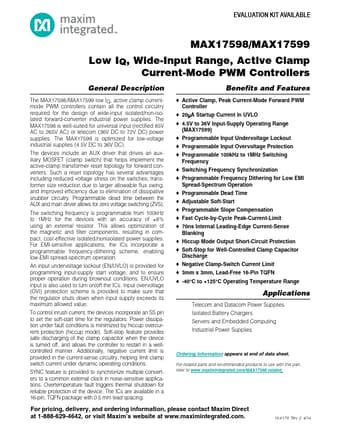

Additional preview pages of the MAX17599 datasheet.

Product details

Description

The MAX17598/MAX17599 low IQ, active clamp currentmode PWM controllers contain all the control circuitry required for the design of wide-input isolated/non-isolated forward-converter industrial power supplies.

Features

S Active Clamp, Peak Current-Mode Forward PWM Controller S 20FA Startup Current in UVLO S 4.5V to 36V Input-Supply Operating Range (MAX17599) S Programmable Input Undervoltage Lockout S Programmable Input Overvoltage Protection S Programmable 100kHz to 1MHz Switching Frequency S Switching Frequency Synchronization S Programmable Frequency Dithering for Low EMI Spread-Spectrum Operation S Programmable Dead Time S Adjustable Soft-Start S Programmable Slope Compensation S Fast Cycle-by-.
