MAX17005B - Highest Switching-Frequency Notebook Battery Chargers

Name: MAX17005B
SKU: MAX17005B-647690

Maxim Integrated Products

The MAX17005B by Maxim Integrated Products is a Highest Switching-Frequency Notebook Battery Chargers. Below is the official datasheet preview.

📥 Download Datasheet

MAX17005B Highest Switching-Frequency Notebook Battery Chargers by Maxim Integrated Products - Datasheet Preview — Official preview page of the **MAX17005B** Highest Switching-Frequency Notebook Battery Chargers datasheet (Maxim Integrated Products).

Datasheet Details

Part number	MAX17005B
Manufacturer	Maxim Integrated Products
File Size	339.44 KB
Description	Highest Switching-Frequency Notebook Battery Chargers
Datasheet	MAX17005B_MaximIntegratedProducts.pdf

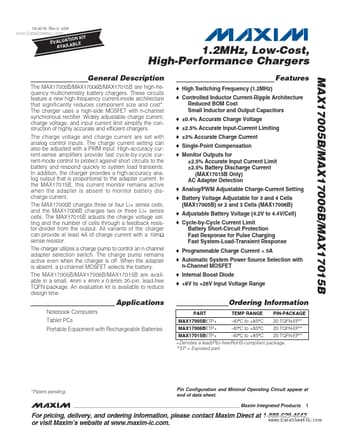

Additional preview pages of the MAX17005B datasheet.

MAX17005B Product details

Features

o High Switching Frequency (1.2MHz) o Controlled Inductor Current-Ripple Architecture Reduced BOM Cost Small Inductor and Output Capacitors o ±0.4% Accurate Charge Voltage o ±2.5% Accurate Input-Current Limiting o ±3% Accurate Charge Current o Single-Point Compensation o Monitor Outputs for ±2.5% Accurate Input Current Limit ±2.5% Battery Discharge Current (MAX17015B Only) AC Adapter Detection o Analog/PWM Adjustable Charge-Current Setting o Battery Voltage Adjustable for 3 and 4 Cells (MAX17005.
