MAX16802B - Offline and DC-DC PWM Controllers

Download the MAX16802B datasheet PDF. This datasheet also covers the MAX16801A variant, as both devices belong to the same offline and dc-dc pwm controllers family and are provided as variant models within a single manufacturer datasheet.

Features

  • Suitable for Buck, Boost, Flyback, SEPIC, and Other Topologies.
  • Up to 50W or Higher Output Power.
  • Universal Offline Input Voltage Range: Rectified 85VAC to 265VAC (MAX16801).
  • IN Pin Directly Driven From 10.8VDC to 24VDC Input (MAX16802).
  • Internal Error Amplifier with 1% Accurate Reference for Precise LED Current Regulation.
  • PWM or Linear Dimming.
  • Fixed Switching Frequency of 262kHz ±12%.
  • Thermal Shutdown.
  • Digital S.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MAX16801A_MaximIntegratedProducts.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
MAX1680 Switched-Capacitor Voltage Converters Maxim
MAX1681 Switched-Capacitor Voltage Converters Maxim
MAX16813 High-Brightness LED Driver Maxim Integrated
MAX1682 Switched-Capacitor Voltage Doublers Maxim
MAX16822A High-Brightness LED Drivers Maxim Integrated

Other Datasheets by Maxim Integrated (Analog Devices)

Part Number Description
MAX16802A Offline and DC-DC PWM Controllers
MAX16800 Adjustable Linear High-Brightness LED (HB LED) Driver
MAX16801A Offline and DC-DC PWM Controllers
MAX16801B Offline and DC-DC PWM Controllers
MAX16803 High-Brightness LED Driver

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

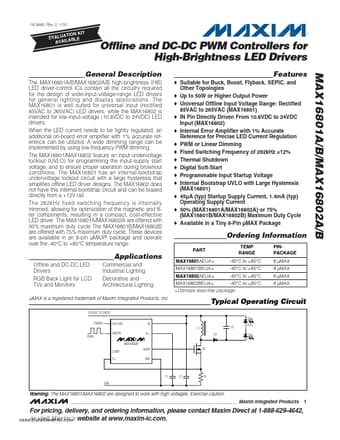

19-3880; Rev 2; 1/10 KIT ATION EVALU E L B A AVAIL www.DataSheet4U.com Offline and DC-DC PWM Controllers for High-Brightness LED Drivers General Description Features ♦ Suitable for Buck, Boost, Flyback, SEPIC, and Other Topologies ♦ Up to 50W or Higher Output Power ♦ Universal Offline Input Voltage Range: Rectified 85VAC to 265VAC (MAX16801) ♦ IN Pin Directly Driven From 10.8VDC to 24VDC Input (MAX16802) ♦ Internal Error Amplifier with 1% Accurate Reference for Precise LED Current Regulation ♦ PWM or Linear Dimming ♦ Fixed Switching Frequency of 262kHz ±12% ♦ Thermal Shutdown ♦ Digital Soft-Start ♦ Programmable Input Startup Voltage ♦ Internal Bootstrap UVLO with Large Hysteresis (MAX16801) ♦ 45µA (typ) Startup Supply Current, 1.
