MAX16033, MAX16040 - (MAX16033 - MAX16040) Low-Power Battery Backup Circuits

Maxim Integrated Products

The MAX16033 by Maxim Integrated Products is a (MAX16033 - MAX16040) Low-Power Battery Backup Circuits. Below is the official datasheet preview.

📥 Download Datasheet

MAX16033 (MAX16033 - MAX16040) Low-Power Battery Backup Circuits by Maxim Integrated Products - Datasheet Preview — Official preview page of the **MAX16033** (MAX16033 - MAX16040) Low-Power Battery Backup Circuits datasheet (Maxim Integrated Products).

Datasheet Details

Part number	MAX16033, MAX16040
Manufacturer	Maxim Integrated Products
File Size	469.10 KB
Description	(MAX16033 - MAX16040) Low-Power Battery Backup Circuits
Datasheet	MAX16040_MaximIntegratedProducts.pdf
Note	This datasheet PDF includes multiple part numbers: MAX16033, MAX16040. Please refer to the document for exact specifications by model.

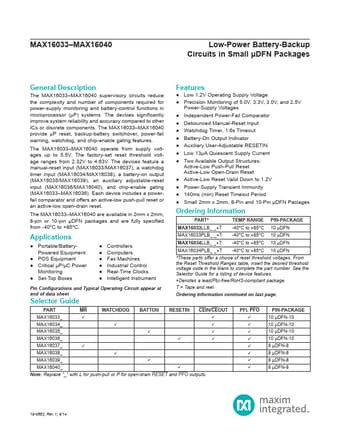

Additional preview pages of the MAX16033 datasheet.

MAX16033 Product details

Description

The MAX16033 MAX16040 supervisory circuits reduce the complexity and number of components required for power-supply monitoring and battery control functions in microprocessor (µP) systems. MAX16040 provide µP reset, backup-batwww.DataSheet4U.com tery switchover, power-fail warning, watchdog, and chip-enable gating

Features

The MAX16033.
MAX16040 operate from supply voltages up to 5.5V. The factory-set reset threshold voltage ranges from 2.32V to 4.63V. The devices feature a manual-reset input (MAX16033/MAX16037), a watchdog timer input (MAX16034/MAX16038), a battery-on output (MAX16035/MAX16039), an auxiliary adjustable reset input (MAX16036/MAX16040), and chip-enable gating (MAX16033.
MAX16036). Each device includes a power-fail comparator and offers an active-low pushpull reset or an active-low op.
