MAX14525 - Battery Switch

General Description

The MAX14525

Key Features

  • a low RON 35mΩ (typ) load switch with four unique enable inputs. The MAX14525 is ideal for disconnecting the lithium-ion (Li+) battery from the loads in portable devices such as cell phones. The MAX14525 operates from a +2.2V to +5.5V supply voltage. The MAX14525 features an extremely low 0.8µA (typ) quiescent supply current to maximize battery life in portable devices. It is enabled from four possible inputs: external charger connection capable of high voltage up to +28V, travel adapter (TA), o.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MAX1452 Low-Cost Precision Sensor Signal Conditioner Maxim
MAX145 Serial 12-Bit ADCs Maxim
MAX1450 1%-Accurate Signal Conditioner Maxim
MAX14502 Hi-Speed USB-to-SD Card Readers Maxim Integrated
MAX14504 Dual SPDT Negative Rail Analog Switches Maxim Integrated

Other Datasheets by Maxim Integrated (Analog Devices)

Part Number Description
MAX14521E High-Voltage EL Lamp Driver
MAX14523A Adjustable Current-Limit Switches
MAX14523AL Adjustable Current-Limit Switches
MAX14523B Adjustable Current-Limit Switches
MAX14523C Adjustable Current-Limit Switches

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

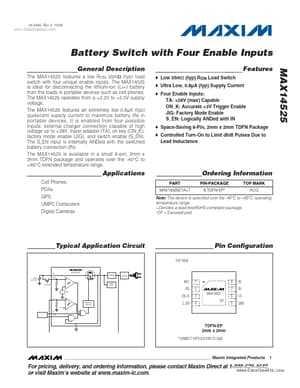

19-4356; Rev 0; 10/08 www.DataSheet4U.com Battery Switch with Four Enable Inputs General Description The MAX14525 features a low RON 35mΩ (typ) load switch with four unique enable inputs. The MAX14525 is ideal for disconnecting the lithium-ion (Li+) battery from the loads in portable devices such as cell phones. The MAX14525 operates from a +2.2V to +5.5V supply voltage. The MAX14525 features an extremely low 0.8µA (typ) quiescent supply current to maximize battery life in portable devices. It is enabled from four possible inputs: external charger connection capable of high voltage up to +28V, travel adapter (TA), on key (ON_K), factory mode enable (JIG), and switch enable (S_EN). The S_EN input is internally ANDed with the switched battery connection (IN).
