Part number	MAX11508
Manufacturer	Maxim Integrated Products
File Size	179.14 KB
Description	HD/PS/SD/BP Video Filters
Datasheet	MAX11508 Datasheet

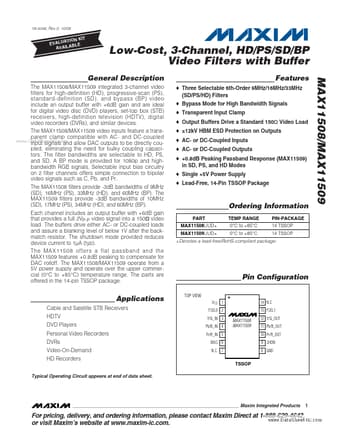

Additional preview pages of the MAX11508 datasheet.

Product details

Features

Three Selectable 6th-Order 9MHz/16MHz/33MHz (SD/PS/HD) Filters.
Bypass Mode for High Bandwidth Signals.
Transparent Input Clamp.
Output Buffers Drive a Standard 150Ω Video Load.
±12kV HBM ESD Protection on Outputs.
AC- or DC-Coupled Inputs.
AC- or DC-Coupled Outputs.
+0.8dB Peaking Passband Response (MAX11509) in SD, PS, and HD Modes.
Single +5V Power Supply.
Lead-Free, 14-Pin TSSOP Package MAX11508/MAX11.
