DS8024 - Smart Card Interface

Name: DS8024
SKU: DS8024-650314

Maxim Integrated Products

📥 Download Datasheet

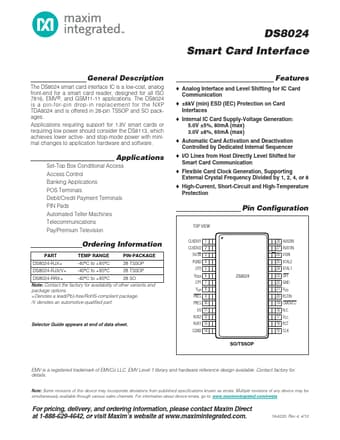

DS8024 Datasheet Preview — Preview of DS8024 PDF

Datasheet Details

Part number	DS8024
Manufacturer	Maxim Integrated Products
File Size	275.29 KB
Description	Smart Card Interface
Datasheet	DS8024_MaximIntegratedProducts.pdf

DS8024 Product details

Description

The DS8024 smart card interface IC is a low-cost, analog front-end for a smart card reader, designed for all ISO 7816, EMV , and GSM11-11 applications.

Features

Analog Interface and Level Shifting for IC Card Communication.
8kV (min) ESD (IEC) Protection on Card Interfaces.
Internal IC Card Supply-Voltage Generation: 5.0V ±5%, 80mA (max) 3.0V ±8%, 65mA (max).
Automatic Card Activation and Deactivation Controlled by Dedicated Internal Sequencer.
I/O Lines from Host Directly Level Shifted for Smart Card Communication.
Flexible Card Clock Generation, Supporting External Crystal Frequency Divided by 1,.
