DS3104-SE - Line Card Timing IC

General Description

The DS3104-SE is a low-cost, feature-rich timing IC for line cards with synchronous Gigabit Ethernet (GbE), 10-Gigabit Ethernet (10GbE), and Fast Ethernet ports.

Key Features

  • Timing Card to Line Card Path.
  • Two Input Clocks from Master and Slave Timing Cards (LVDS/LVPECL or CMOS/TTL) Optional Frame Sync Inputs and Outputs Continuous Input Clock Quality Monitoring Hitless Reference Switching, Automatic or Manual Holdover on Loss of All Inputs Programmable PLL Bandwidth, 1Hz to 400Hz Frequency Conversion Between SONET/SDH Rates and Ethernet MII/GMII/XGMII Rates Up to 7 Output Clocks.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DS3100 Stratum 2/3E/3 Timing Card-IC Microsemi
DS3101 Stratum 3/3E Timing Card IC Dallas Semiconductor
DS310W Surface Mount Schottky Barrier Rectifier SEMIPOWER
DS310W SCHOTTKY BARRIER RECTIFIER AiT Components
DS310W SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER Rectron

Other Datasheets by Maxim Integrated (Analog Devices)

Part Number Description
DS3100 Stratum 3/3E Timing Card-IC
DS3105 Line Card Timing IC
DS31400 Dual DPLL Timing IC
DS31404 Dual DPLL Timing IC
DS31406 Single DPLL Timing IC

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

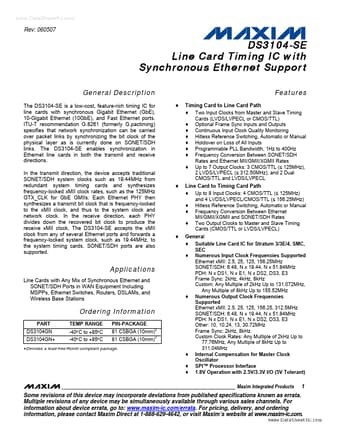

www.DataSheet4U.com Rev: 060507 DS3104-SE Line Card Timing IC with Synchronous Ethernet Support General Description The DS3104-SE is a low-cost, feature-rich timing IC for line cards with synchronous Gigabit Ethernet (GbE), 10-Gigabit Ethernet (10GbE), and Fast Ethernet ports. ITU-T recommendation G.8261 (formerly G.pactiming) specifies that network synchronization can be carried over packet links by synchronizing the bit clock of the physical layer as is currently done on SONET/SDH links. The DS3104-SE enables synchronization in Ethernet line cards in both the transmit and receive directions. In the transmit direction, the device accepts traditional SONET/SDH system clocks such as 19.
