DS3065W - Single-Piece 8Mb Nonvolatile SRAM

Name: DS3065W
SKU: DS3065W-565840

Maxim Integrated Products

📥 Download Datasheet

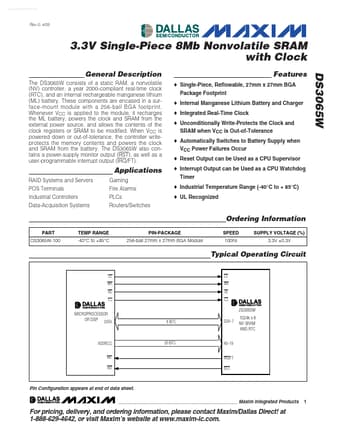

DS3065W Datasheet Preview — Preview of DS3065W PDF

Datasheet Details

Part number	DS3065W
Manufacturer	Maxim Integrated Products
File Size	345.35 KB
Description	Single-Piece 8Mb Nonvolatile SRAM
Datasheet	DS3065W_MaximIntegratedProducts.pdf

DS3065W Product details

Description

The DS3065W consists of a static RAM, a nonvolatile (NV) controller, a year 2000-compliant real-time clock (RTC), and an internal rechargeable manganese lithium (ML) battery.

Features

Single-Piece, Reflowable, 27mm x 27mm BGA Package Footprint.
Internal Manganese Lithium Battery and Charger.
Integrated Real-Time Clock.
Unconditionally Write-Protects the Clock and SRAM when VCC is Out-of-Tolerance.
Automatically Switches to Battery Supply when VCC Power Failures Occur.
Reset Output can be Used as a CPU Supervisor.
Interrupt Output can be Used as a CPU Watchdog Timer.
Industrial Temperature Range (-40°C to.
