DS2045AB - Single-Piece 1M Nonvolatile SRAM

Download the DS2045AB datasheet PDF. This datasheet also covers the DS2045Y variant, as both devices belong to the same single-piece 1m nonvolatile sram family and are provided as variant models within a single manufacturer datasheet.

Description

Pin Configuration appears at end of data sheet.

Features

  • Single-Piece, Reflowable, PBGA Package Footprint.
  • Internal ML Battery and Charger.
  • Unconditionally Write-Protects SRAM when VCC is Out-of-Tolerance.
  • Automatically Switches to Battery Supply when VCC Power Failures Occur.
  • Internal Power-Supply Monitor Detects Power Fail at 5% or 10% Below Nominal VCC (5V).
  • Reset Output can be used as a CPU Supervisor for a Microprocessor.
  • Industrial Temperature Range (-40°C to +85°C).
  • UL Rec.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (DS2045Y_MaximIntegratedProducts.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
DS20424 Remote Control Color TV Service Manual Sanyo
DS20425 Color TV Sanyo
DS2000-3 AC-DC / Distributed Power Front-End 1U Emerson
DS2001 HIGH CURRENT / VOLTAGE DARLINGTON DRIVERS National Semiconductor
DS2002 HIGH CURRENT / VOLTAGE DARLINGTON DRIVERS National Semiconductor

Other Datasheets by Maxim Integrated (Analog Devices)

Part Number Description
DS2045L Single-Piece 1M Nonvolatile SRAM
DS2045W Single-Piece 1M Nonvolatile SRAM
DS2045Y Single-Piece 1M Nonvolatile SRAM
DS2030AB Single-Piece 256kb Nonvolatile SRAM
DS2030W 3.3V Single-Piece 256k Nonvolatile SRAM

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

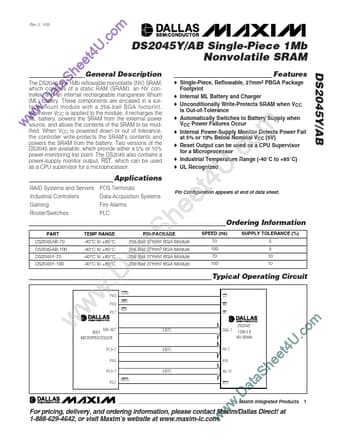

Rev 2; 1/05 w The DS2045 is a 1Mb reflowable nonvolatile (NV) SRAM, which consists of a static RAM (SRAM), an NV controller, and an internal rechargeable manganese lithium (ML) battery. These components are encased in a surface-mount module with a 256-ball BGA footprint. Whenever VCC is applied to the module, it recharges the ML battery, powers the SRAM from the external power source, and allows the contents of the SRAM to be modified. When VCC is powered down or out of tolerance, the controller write-protects the SRAM’s contents and powers the SRAM from the battery. Two versions of the DS2045 are available, which provide either a 5% or 10% power-monitoring trip point. The DS2045 also contains a power-supply monitor output, RST, which can be used as a CPU supervisor for a microprocessor.
