MT7810 - High Efficiency High Precision Buck Constant Current Driver

Product Overview

Maxic Technology

Part number	MT7810
Manufacturer	Maxic Technology
File Size	279.79 KB
Description	High Efficiency High Precision Buck Constant Current Driver
Datasheet	MT7810 Datasheet

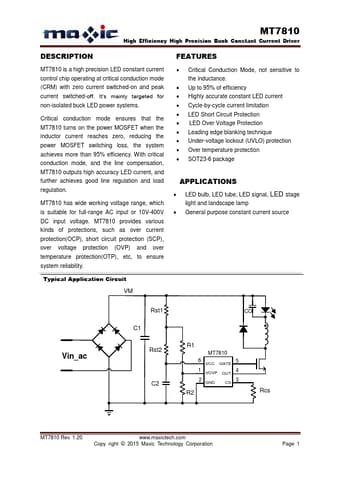

Additional preview pages of the MT7810 datasheet.

MT7810 is a high precision LED constant current control chip operating at critical conduction mode (CRM) with zero current switched-on and peak current switched-off. It’s mainly targeted for non-isolated buck LED power systems. Critical conduction mode ensures that the MT7810 turns on the power MOSFET when the inductor current reaches zero, reducing the power MOSFET switching loss, the system achieves more than 95% efficiency. With critical conduction mode, and the line compensation, MT7810 out.
