The MT5820 by Maxic Technology is a High Performance Wireless Power Transmitter. Below is the official datasheet preview.

Datasheet Details

Part number	MT5820
Manufacturer	Maxic Technology
File Size	168.96 KB
Description	High Performance Wireless Power Transmitter
Datasheet	MT5820-MaxicTechnology.pdf

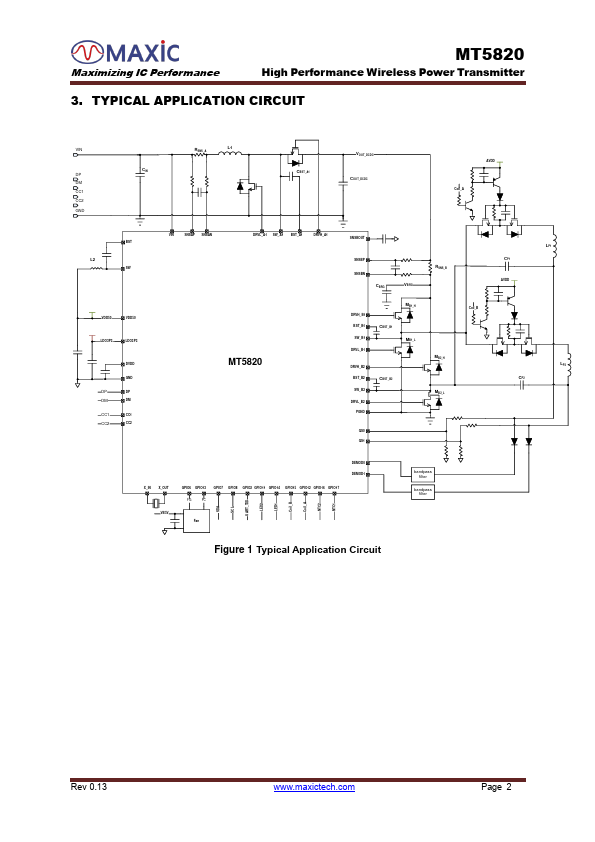

Additional preview pages of the MT5820 datasheet.

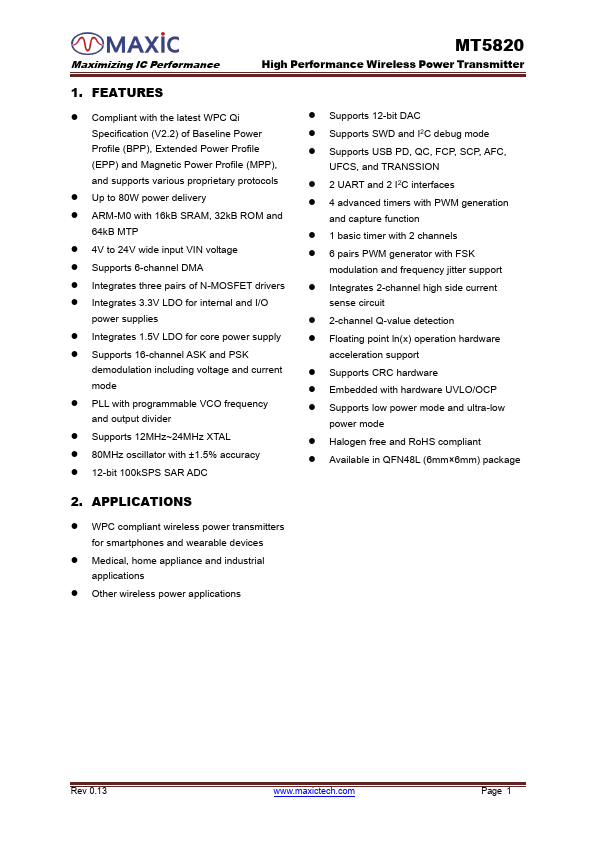

MT5820 is a highly integrated, high-performance System on Chip (SoC) designed for magnetic induction-based wireless power transmitter solutions.

Compliant with the latest WPC Qi Specification (V2.2) of Baseline Power Profile (BPP), Extended Power Profile (EPP) and Magnetic Power Profile (MPP), and supports various proprietary protocols.
Up to 80W power delivery.
ARM-M0 with 16kB SRAM, 32kB ROM and 64kB MTP.
4V to 24V wide input VIN voltage.
Supports 6-channel DMA.
Integrates three pairs of N-MOSFET drivers.
Integrates 3.3V LDO for internal and I/O power supplies.
Integrates 1.5V LDO for core power.
