XR21B1424 - Enhanced 4-Ch Full-Speed USB UART

MaxLinear

📥 Download Datasheet

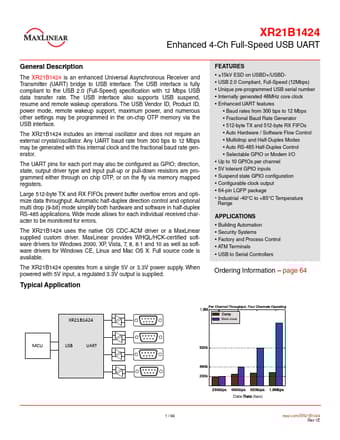

XR21B1424 Datasheet Preview — Preview of XR21B1424 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	XR21B1424
Manufacturer	MaxLinear
File Size	1.13 MB
Description	Enhanced 4-Ch Full-Speed USB UART
Datasheet	XR21B1424-MaxLinear.pdf

XR21B1424 Product details

Description

The XR21B1424 is an enhanced Universal Asynchronous Receiver and Transmitter (UART) bridge to USB interface.

Features

±15kV ESD on USBD+/USBD.
USB 2.0 Compliant, Full-Speed (12Mbps).
Unique pre-programmed USB serial number.
Internally generated 48MHz core clock.
Enhanced UART features.
Baud rates from 300 bps to 12 Mbps.
Fractional Baud Rate Generator.
512-byte TX and 512-byte RX FIFOs.
Auto Hardware / Software Flow Control.
Multidrop and Half-Duplex Modes.
Auto RS-485 Half-Duplex Control.
Selectable GPIO.
