SP338E - RS-232/RS-485/RS-422 TRANSCEIVER

SP338E Description

SP338E RS-232/RS-485/RS-422 TRANSCEIVER WITH INTERNAL TERMINATION FEBRUARY 2018 REV.1.0.1 GENERAL .
The SP338 is an advanced multiprotocol transceiver supporting RS-232, RS-485, and RS-422 serial standards in a 40 pin QFN package.

SP338E Features

* Pin selectable Cable Termination
* No external resistors required for RS-485/422 termination and biasing
* 3.3V or 5V Single Supply Operation
* Robust ESD Protection on bus pins
* ±15kV Human Body Model (HBM)
* ±8kV IEC 61000-4-2 (Contact)
* Max Data Rate of 20Mbps in R

SP338E Applications

* Dual Protocol Serial Ports (RS-232 or RS-485/422)
* Industrial Computers
* Industrial and Process Control Equipment
* Point-Of-Sale Equipment
* Networking Equipment
* HVAC Controls Equipment
* Building Security and Automation Equipment ORDERING INFORMATION(1) PART NUM

📥 Download Datasheet

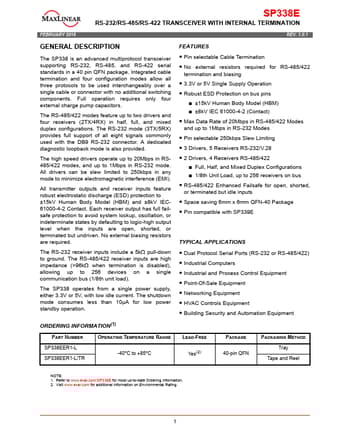

Preview of SP338E PDF
