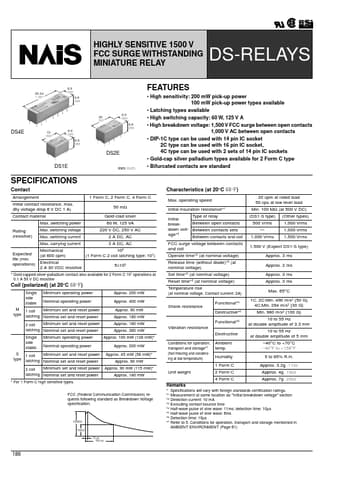

HIGHLY SENSITIVE 1500 V FCC SURGE WITHSTANDING MINIATURE RELAY
9.9 .390 9.8 .386
DS-RELAYS
FEATURES
• High sensitivity: 200 mW pick-up power 100 mW pick-up power types available • Latching types available • High switching capacity: 60 W, 125 V A • High breakdown voltage: 1,500 V FCC surge between open contacts 1,000 V AC between open contacts • DIP-1C type can be used with 14 pin IC socket 2C type can be used with 16 pin IC socket, 4C type can be used with 2 sets of 14 pin IC sockets • Gold-cap silver palladium types available for 2 Form C type • Bifurcated contacts are standard
35.24 1.387
20 .787
9.9 .390 9.8 .386
DS4E
15 .590
9.9 .390 9.8 .386
DS2E DS1E
mm inch
SPECIFICATIONS
Contact
Arrangement 1 Form C, 2 Form C, 4 Form C Initial contact resistance, max.
