MEBSS138 - N-Channel MOSFET

Description

The MEBSS138 is the N-Channel logic enhancement mode power field effect transistors are produced using high cell density, DMOS trench technology.

This high density process is especially tailored to minimize on-state resistance.

Features

  • RDS(ON)≦3Ω@VGS=10V.
  • RDS(ON)≦3.5Ω@VGS=5V.
  • RDS(ON)≦7Ω@VGS=2.75V.
  • Super high density cell design for extremely low RDS(ON).
  • Exceptional on-resistance and maximum DC current capability.

📥 Download Datasheet

Datasheet Details

Part number MEBSS138
Manufacturer Matsuki
File Size 685.46 KB
Description N-Channel MOSFET
Datasheet download datasheet MEBSS138 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MEB Micro Edgeboard ITT Industries
MEB Metallized Polyester Film Capacitor HITANO
MEB00806 Three-Phase Diode Powerex Powers

Other Datasheets by Matsuki

Part Number Description
MEBSS138-G N-Channel MOSFET
MEBSS138D N-Channel MOSFET
MEBSS138D-G N-Channel MOSFET
MEBSS138DK N-Channel MOSFET
MEBSS138DK-G N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

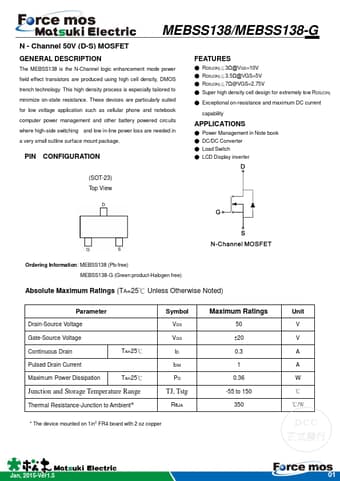

MEBSS138/MEBSS138-G N - Channel 50V (D-S) MOSFET GENERAL DESCRIPTION The MEBSS138 is the N-Channel logic enhancement mode power field effect transistors are produced using high cell density, DMOS trench technology. This high density process is especially tailored to minimize on-state resistance. These devices are particularly suited for low voltage application such as cellular phone and notebook computer power management and other battery powered circuits where high-side switching and low in-line power loss are needed in a very small outline surface mount package. PIN CONFIGURATION FEATURES ● RDS(ON)≦3Ω@VGS=10V ● RDS(ON)≦3.5Ω@VGS=5V ● RDS(ON)≦7Ω@VGS=2.
