ME2347 - P-Channel Enhancement Mode Mosfet

Description

The ME2347 is the P-Channel logic enhancement mode power field effect transistors are produced using high cell density, DMOS trench technology.

This high density process is especially tailored to minimize on-state resistance.

Features

  • RDS(ON)≦80mΩ@VGS=-10V.
  • RDS(ON)≦95mΩ@VGS=-4.5V.
  • RDS(ON)≦120mΩ@VGS=-2.5V.
  • Super high density cell design for extremely low RDS(ON).
  • Exceptional on-resistance and maximum DC current capability.

📥 Download Datasheet

Datasheet Details

Part number ME2347
Manufacturer Matsuki
File Size 1.19 MB
Description P-Channel Enhancement Mode Mosfet
Datasheet download datasheet ME2347 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ME2345A P-Channel MOSFET VBsemi
ME2301D P-Channel MOSFET VBsemi
ME2303 P-Channel MOSFET VBsemi
ME2305 P-Channel MOSFET HAOHAI
ME2306 N-Channel MOSFET VBsemi

Other Datasheets by Matsuki

Part Number Description
ME2347-G P-Channel Enhancement Mode Mosfet
ME2345 P-Channel Enhancement Mode Mosfet
ME2345-G P-Channel Enhancement Mode Mosfet
ME2345A P-Channel 30V (D-S) MOSFET
ME2345A-G P-Channel 30V (D-S) MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

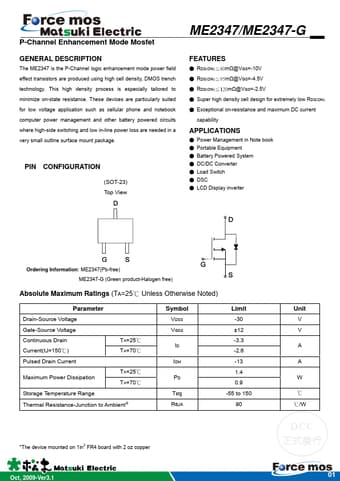

P-Channel Enhancement Mode Mosfet GENERAL DESCRIPTION The ME2347 is the P-Channel logic enhancement mode power field effect transistors are produced using high cell density, DMOS trench technology. This high density process is especially tailored to minimize on-state resistance. These devices are particularly suited for low voltage application such as cellular phone and notebook computer power management and other battery powered circuits where high-side switching and low in-line power loss are needed in a very small outline surface mount package. PIN CONFIGURATION (SOT-23) Top View ME2347/ME2347-G FEATURES ● RDS(ON)≦80mΩ@VGS=-10V ● RDS(ON)≦95mΩ@VGS=-4.5V ● RDS(ON)≦120mΩ@VGS=-2.
