ME2322 - N-Channel 55V (D-S) MOSFET

Matsuki

The ME2322 by Matsuki is a N-Channel 55V (D-S) MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

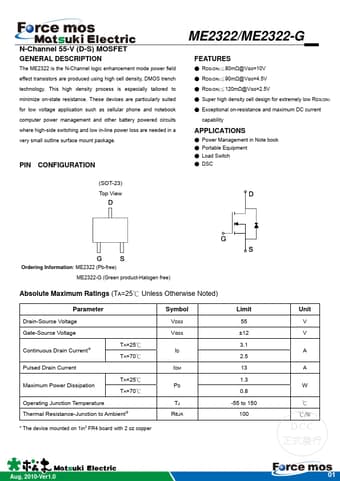

ME2322 N-Channel 55V (D-S) MOSFET by Matsuki - Datasheet Preview — Official preview page of the ME2322 N-Channel 55V (D-S) MOSFET datasheet (Matsuki).

Datasheet Details

Part number	ME2322
Manufacturer	Matsuki
File Size	1.04 MB
Description	N-Channel 55V (D-S) MOSFET
Datasheet	ME2322-Matsuki.pdf
Additional preview pages of the ME2322 datasheet.

ME2322 Product details

Description

The ME2322 is the N-Channel logic enhancement mode power field effect transistors are produced using high cell density, DMOS trench technology.

Features

RDS(ON)≦80mΩ@VGS=10V.
RDS(ON)≦90mΩ@VGS=4.5V.
RDS(ON)≦120mΩ@VGS=2.5V.
Super high density cell design for extremely low RDS(ON).
Exceptional on-resistance and maximum DC current capability.
