MI6030 Datasheet (Marlow) - Thermoelectric Cooler

MI6030, Thermoelectric Cooler

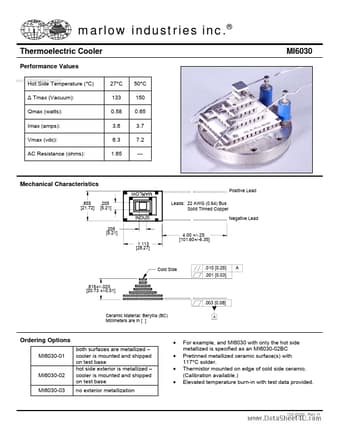

marlow industries inc.® Thermoelectric Cooler Performance Values www.datasheet4u.com MI6030 Hot Side Temperature (°C) ∆ Tmax (Vacuum): Qmax (watts): Imax (amps): Vmax (vdc): AC Resistance (ohms): 27°C 133 0.58 3.6 6.3 1.65 50°C 150 0.65 3.7 7.2 - Mechanical Characteristics Positive Lead Leads: 22 AWG (0.64) Bus Solid Tinned Copper .855 [21.72] .205 [5.21] .205 [5.21] 1.113 [28.27] .816+/-.020 [20.73 +/-0.51] .003 [0.08] Ceramic Material: Beryllia (BC) Millimeters are in [ ] A Or
