Datasheet Details
| Part number | MPBM20N60BTB |
|---|---|
| Manufacturer | Marching Power |
| File Size | 749.82 KB |
| Description | Intelligent Power Module |
| Datasheet |
 MPBM20N60BTB Datasheet
|
|
|
| Part number | MPBM20N60BTB |
|---|---|
| Manufacturer | Marching Power |
| File Size | 749.82 KB |
| Description | Intelligent Power Module |
| Datasheet |
MPBM20N60BTB Datasheet
|
|
|
|

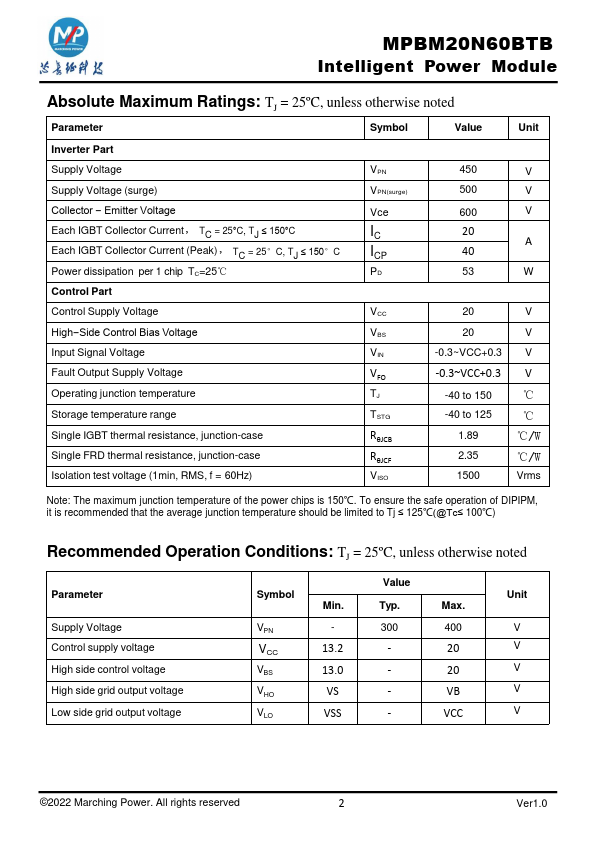

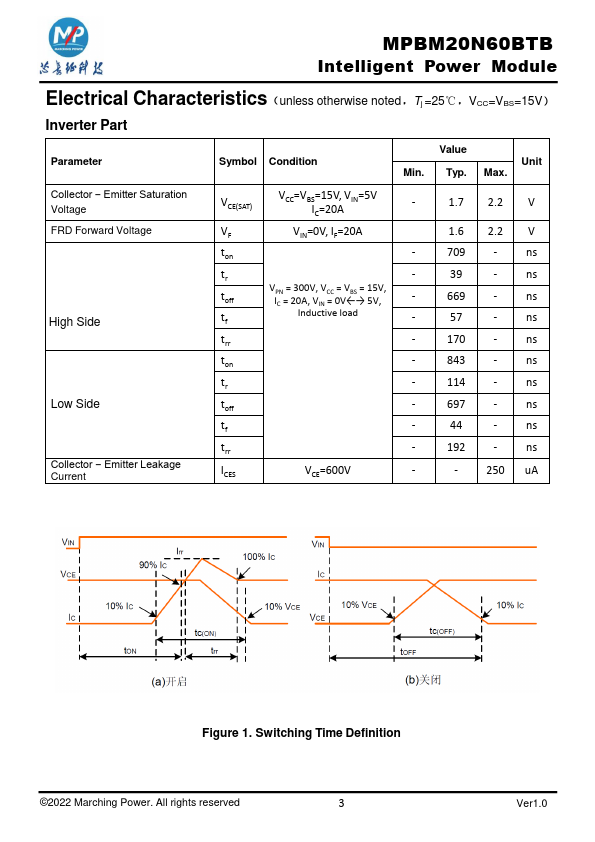

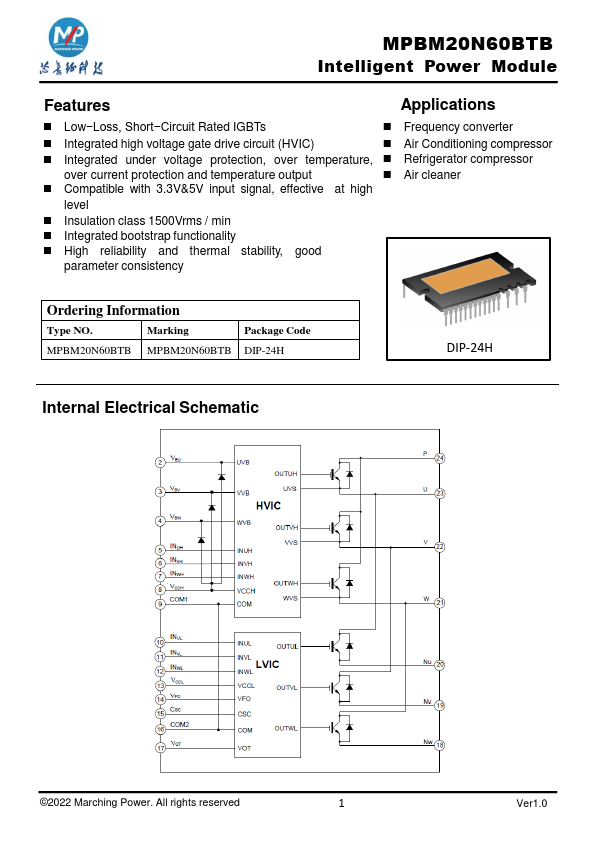

Pin Number 1-1 1-2 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 Pin name COM VCC VBU VBV VBW INUH INVH INWH VCCH COM1 INUL INVL INWL VCCL VFO Csc COM2 VOT ©2022 Marching Power.All rights reserved Pin Description Internal common ground terminal Internal power terminal, No Connection U-phase high side floating IC supply voltage V-phase high side floating IC supply voltage W-phase high side floating IC supply voltage U-phase high side gate driver input V-phase high side gate driver input W-phase hig
