SLD65R2K6SJ - N-Channel MOSFET

Name: SLD65R2K6SJ
SKU: SLD65R2K6SJ-1108250

Maple Semiconductor

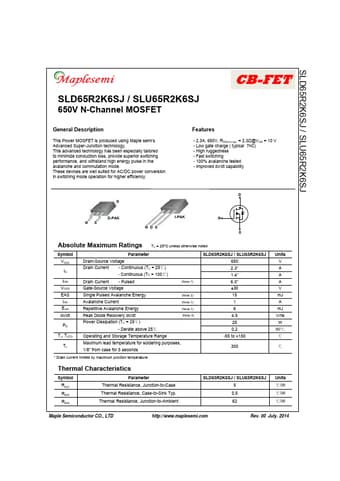

The SLD65R2K6SJ by Maple Semiconductor is a N-Channel MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	SLD65R2K6SJ
Manufacturer	Maple Semiconductor
File Size	627.85 KB
Description	N-Channel MOSFET
Datasheet	SLD65R2K6SJ-MapleSemiconductor.pdf
Additional preview pages of the SLD65R2K6SJ datasheet.

This Power MOSFET is produced using Maple semi‘s Advanced Super-Junction technology.

- 2.3A, 650V, RDS(on) typ. = 2.3Ω@VGS = 10 V - Low gate charge ( typical 7nC) - High ruggedness - Fast switching - 100% avalanche tested - Improved dv/dt capability D D GS D-PAK GDS I-PAK G S Absolute Maximum Ratings TC = 25°C unless otherwise noted Symbol Parameter SLD65R2K6SJ / SLU65R2K6SJ VDSS ID IDM VGSS EAS IAR EAR dv/dt PD TJ, TSTG TL Drain-Source Voltage Drain Current - Continuous (TC = 25℃) - Continuous (TC = 100℃) Drain Current - Pulsed (Note 1) Gate-Source Vol.
