MMF60R360Q - N-Channel MOSFET

Description

MMF60R360Q is power MOSFET using Magnachip’s advanced super junction technology that can realize very low on-resistance and gate charge.

It will provide much high efficiency by using optimized charge coupling technology.

Features

  • Low Power Loss by High Speed Switching and Low On-Resistance.
  • 100% Avalanche Tested.
  • Green Package.
  • Pb Free Plating, Halogen Free.

📥 Download Datasheet

Datasheet Details

Part number MMF60R360Q
Manufacturer MagnaChip
File Size 1.42 MB
Description N-Channel MOSFET
Datasheet download datasheet MMF60R360Q Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MMF60R360QTH N-Channel MOSFET INCHANGE
MMF60R360P N-Channel MOSFET INCHANGE
MMF60R580P N-Channel MOSFET INCHANGE
MMF600S060U FRED MacMic
MMF600S120U FRED MacMic

Other Datasheets by MagnaChip

Part Number Description
MMF60R360P N-channel MOSFET
MMF60R360RZ N-channel MOSFET
MMF60R115P N-channel MOSFET
MMF60R190P N-channel MOSFET
MMF60R190Q N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

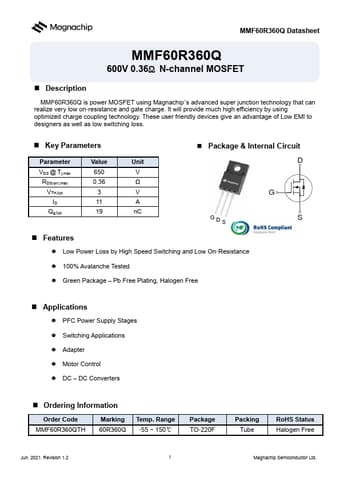

MMF60R360Q Datasheet MMF60R360Q 600V 0.36Ω N-channel MOSFET  Description MMF60R360Q is power MOSFET using Magnachip’s advanced super junction technology that can realize very low on-resistance and gate charge. It will provide much high efficiency by using optimized charge coupling technology. These user friendly devices give an advantage of Low EMI to designers as well as low switching loss.  Key Parameters Parameter VDS @ Tj,max RDS(on),max VTH,typ ID Qg,typ Value 650 0.
