MDV1527 - N-Channel Trench MOSFET

Product Overview

MagnaChip

Datasheet Details

Part number	MDV1527
Manufacturer	MagnaChip
File Size	1.13 MB
Description	N-Channel Trench MOSFET
Datasheet	MDV1527 Datasheet

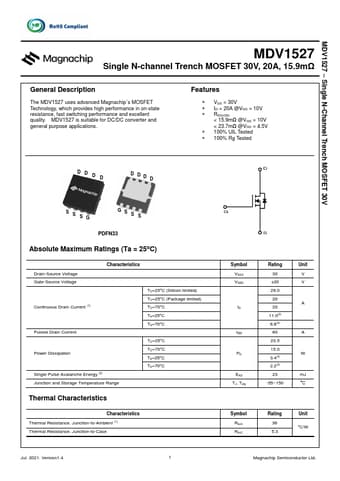

Additional preview pages of the MDV1527 datasheet.

Product details

Description

The MDV1527 uses advanced Magnachip’s MOSFET Technology, which provides high performance in on-state resistance, fast switching performance and excellent quality.

Features

 VDS = 30V  ID = 20A @VGS = 10V  RDS(ON) < 15.9mΩ @VGS = 10V < 23.7mΩ @VGS = 4.5V  100% UIL Tested  100% Rg Tested D DDD D D DDD S S SG GS S S PDFN33 Absolute Maximum Ratings (Ta = 25oC) Drain-Source Voltage Gate-Source Voltage Characteristics Continuous Drain Current (1) Pulsed Drain Current Power Dissipation Single Pulse Avalanche Energy (2) Junction and Storage Temperature Range TC=25oC (Silicon limited) TC=25oC (Package limited) TC=70oC TA=25oC TA=70oC TC=25oC TC=70oC.
