MDQ20N116PTTH - N-Channel MOSFET

Features

  • Trench Power MOSFET technology.
  • N-channel, normal level.
  • Enhanced avalanche ruggedness.
  • 100% UIS and Rg tested.
  • Maximum 175°C junction temperature.

📥 Download Datasheet

Datasheet Details

Part number MDQ20N116PTTH
Manufacturer MagnaChip
File Size 668.27 KB
Description N-Channel MOSFET
Datasheet download datasheet MDQ20N116PTTH Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MDQ200 Single Phase Bridge Rectifier Naina Semiconductor
MDQ200A1600V Single Phase Bridge Rectifier Gold Electric
MDQ-V-xx Dual Element Time Delay Glass Fuse Cooper Electronic Technologies
MDQ-xx Dual Element Time Delay Glass Fuse Cooper Electronic Technologies
MDQ100 Single Phase Rectifier Bridge Yangzhou Yangjie

Other Datasheets by MagnaChip

Part Number Description
MDQ23N50D N-Channel Trench MOSFET
MDQ10N026TH N-Channel MOSFET
MDQ14N049TH N-channel MOSFET
MDQ16N50G N-Channel MOSFET
MDQ18N50G N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

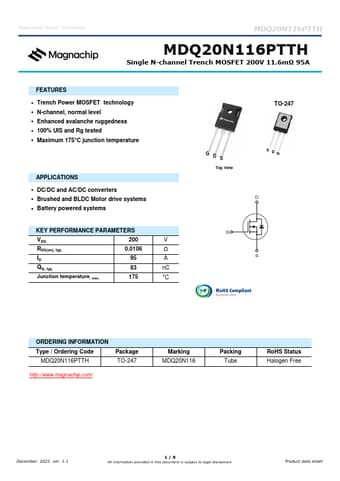

Magnachip Power Technology MDQ20N116PTTH MDQ20N116PTTH Single N-channel Trench MOSFET 200V 11.6mΩ 95A FEATURES • Trench Power MOSFET technology • N-channel, normal level • Enhanced avalanche ruggedness • 100% UIS and Rg tested • Maximum 175°C junction temperature APPLICATIONS • DC/DC and AC/DC converters • Brushed and BLDC Motor drive systems • Battery powered systems KEY PERFORMANCE PARAMETERS VDS RDS(on), typ. ID 200 V 0.0106 Ω 95 A QG, typ. Junction temperature, max. 83 nC 175 oC TO-247 G DS Top View S DG D G S ORDERING INFORMATION Type / Ordering Code MDQ20N116PTTH Package TO-247 http://www.magnachip.com/ Marking MDQ20N116 Packing Tube RoHS Status Halogen Free December. 2022. ver. 1.
