70R380P - N-Channel MOSFET

Datasheet Summary

Description

MME70R380P is power MOSFET using magnachip’s advanced super junction technology that can realize very low on-resistance and gate charge.

It will provide much high efficiency by using optimized charge coupling technology.

Features

  • Low Power Loss by High Speed Switching and Low On-Resistance.
  • 100% Avalanche Tested.
  • Green Package.
  • Pb Free Plating, Halogen Free.

📥 Download Datasheet

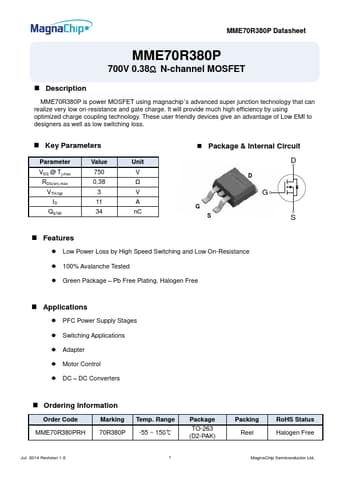

Datasheet preview – 70R380P

Datasheet Details

Part number 70R380P
Manufacturer MagnaChip
File Size 1.12 MB
Description N-Channel MOSFET
Datasheet download datasheet 70R380P Datasheet
Additional preview pages of the 70R380P datasheet.

📁 Similar Datasheet

  • 70R360M - 700V Super-junction Power MOSFET (Unigroup)
  • 70R190C - 700V Super-junction Power MOSFET (Unigroup)
  • 70R1K3S - N-Channel MOSFET (STMicroelectronics)
  • 70R260M - 700V Super-junction Power MOSFET (Unigroup)
Other Datasheets by MagnaChip

Full PDF Text Transcription

Click to expand full text
MME70R380P Datasheet MME70R380P 700V 0.38Ω N-channel MOSFET  Description MME70R380P is power MOSFET using magnachip’s advanced super junction technology that can realize very low on-resistance and gate charge. It will provide much high efficiency by using optimized charge coupling technology. These user friendly devices give an advantage of Low EMI to designers as well as low switching loss.  Key Parameters Parameter VDS @ Tj,max RDS(on),max VTH,typ ID Qg,typ Value 750 0.
