MX29LV017B - 16M-Bit CMOS Flash Memory

Product Overview

Macronix

Part number	MX29LV017B
Manufacturer	Macronix
File Size	370.36 KB
Description	16M-Bit CMOS Flash Memory
Datasheet	MX29LV017B Datasheet
Additional preview pages of the MX29LV017B datasheet.

The MX29LV017B is a 16-mega bit Flash memory organized as 2M bytes of 8 bits.

w w.
Extended single - supply voltage range 2.7V to 3.6V.
2,097,152 x 8.
Single power supply operation - 3.0V only operation for read, erase and program operation.
Fast access time: 70/90ns.
Fully compatible with MX29LV017A decice.
Low power consumption - 30mA maximum active current - 0.2uA typical standby current.

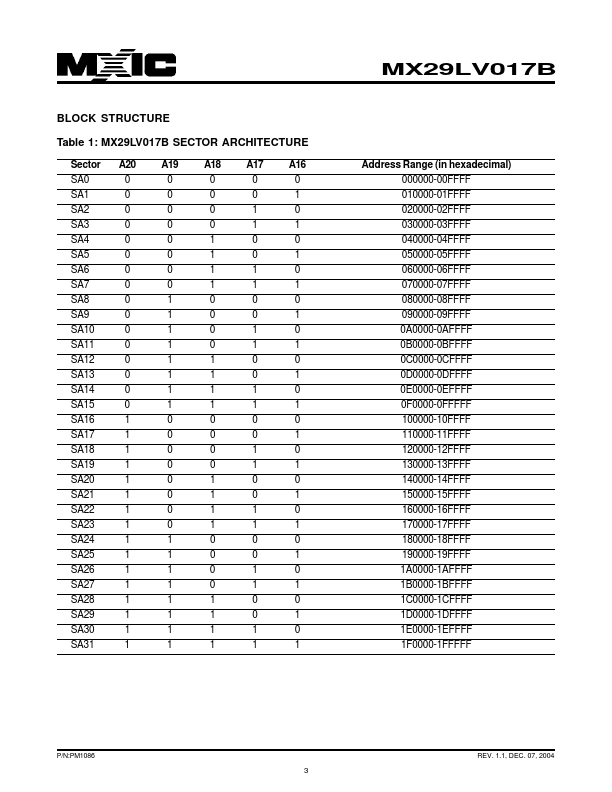

Command register architecture - Byte Programming (9us typical) - Sector Erase (Sector structure 64K-Byte x32).
