MX25L6405D - 64M-BIT [x 1 / x 2] CMOS SERIAL FLASH

Download the MX25L6405D datasheet PDF. This datasheet also covers the MX25L1605D variant, as both devices belong to the same 64m-bit [x 1 / x 2] cmos serial flash family and are provided as variant models within a single manufacturer datasheet.

Features

  • 16M-BIT [x 1 / x 2] CMOS SERIAL FLASH 32M-BIT [x 1 / x 2] CMOS SERIAL FLASH 64M-BIT [x 1 / x 2] CMOS SERIAL FLASH.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MX25L1605D_MacronixInternational.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number MX25L6405D
Manufacturer Macronix
File Size 0.97 MB
Description 64M-BIT [x 1 / x 2] CMOS SERIAL FLASH
Datasheet download datasheet MX25L6405D Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MX25L6405 64M-BIT [x 1] CMOS SERIAL eLiteFlash MEMORY MACRONIX
MX25L6408D FLASH MEMORY MACRONIX
MX25L6408E 64M-BIT [x 1 / x 2] CMOS SERIAL FLASH MACRONIX
MX25L6433F 64M-BIT CMOS MXSMIO FLASH MEMORY MACRONIX
MX25L6435E 64M-BIT [x 1/x 2/x 4] CMOS MXSMIO (SERIAL MULTI I/O) FLASH MEMORY MACRONIX

Other Datasheets by Macronix

Part Number Description
MX25L6402 64M-BIT [x 1] CMOS SERIAL eLite FlashTM MEMORY
MX25L6402A 64M-BIT [x 1] CMOS SERIAL eLite FlashTM MEMORY
MX25L6406E 64M-BIT [x 1 / x 2] CMOS SERIAL FLASH
MX25L1005 1M-BIT [x 1] CMOS SERIAL FLASH
MX25L1021E 512K-BIT [x 1] CMOS SERIAL FLASH Memory

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

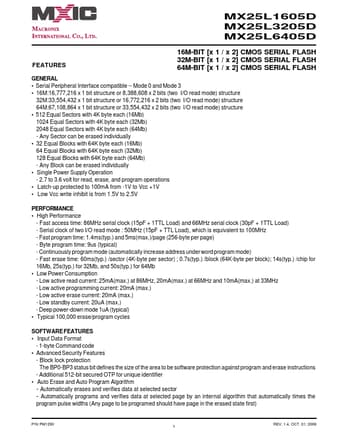

MX25L1605D MX25L3205D MX25L6405D FEATURES 16M-BIT [x 1 / x 2] CMOS SERIAL FLASH 32M-BIT [x 1 / x 2] CMOS SERIAL FLASH 64M-BIT [x 1 / x 2] CMOS SERIAL FLASH GENERAL • Serial Peripheral Interface compatible -- Mode 0 and Mode 3 • 16M:16,777,216 x 1 bit structure or 8,388,608 x 2 bits (two I/O read mode) structure 32M:33,554,432 x 1 bit structure or 16,772,216 x 2 bits (two I/O read mode) structure 64M:67,108,864 x 1 bit structure or 33,554,432 x 2 bits (two I/O read mode) structure • 512 Equal Sectors with 4K byte each (16Mb) 1024 Equal Sectors with 4K byte each (32Mb) 2048 Equal Sectors with 4K byte each (64Mb) - Any Sector can be erased individually • 32 Equal Blocks with 64K byte each (16Mb) 64 Equal Blocks with 64K byte each (32Mb) 128 Equal Blocks with 64K byte each (64Mb) - Any Bloc
