MBI6657 - 1A Dimmable LED Driver

General Description

MBI6657 is a step-down constant-current high-brightness LED driver to provide a cost-effective design solution for interior/exterior illumination applications.

It is designed to deliver constant current to light up high power LED with only 5 external components.

Key Features

  • 6~40V wide input voltage range.
  • Maximum 1A constant output current (1.2A for MBI6657GSB).
  • PWM/DC input for dimming control.
  • Hysteretic PFM operation eliminates external compensation design.
  • Integrated power switch with 0.25-ohm low Rds(on).
  • Full protections: Thermal Foldback/ Thermal Shutdown/ Schottky Diode Short/ LED Open/Short-Circuit.
  • Only 5 external components required.
  • Package MSL Level: 3 Small Outline Transistor GST: SOT-23-6L Product Descriptio.

📥 Download Datasheet

Datasheet Details

Part number MBI6657
Manufacturer Macroblock
File Size 872.36 KB
Description 1A Dimmable LED Driver
Datasheet download datasheet MBI6657 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MBI5020 16-bit constant current LED driver H&M semi

Other Datasheets by Macroblock

Part Number Description
MBI6650 1.2A DC/DC Converter
MBI6651 Step Down / 1A LED Driver
MBI6652 Step-Down LED Driver
MBI6653 1A Dimmable LED Driver
MBI6655 1A LED Driver

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

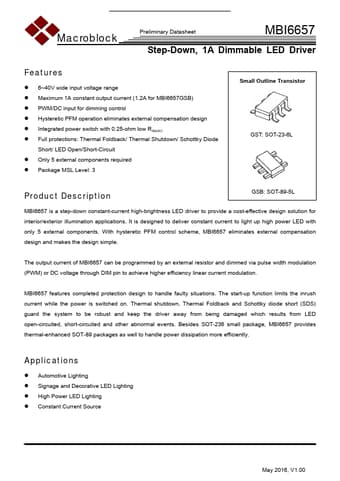

http://YesLED.com / Info@YesLED.com Macroblock Preliminary Datasheet MBI6657 Step-Down, 1A Dimmable LED Driver Features  6~40V wide input voltage range  Maximum 1A constant output current (1.2A for MBI6657GSB)  PWM/DC input for dimming control  Hysteretic PFM operation eliminates external compensation design  Integrated power switch with 0.25-ohm low Rds(on)  Full protections: Thermal Foldback/ Thermal Shutdown/ Schottky Diode Short/ LED Open/Short-Circuit  Only 5 external components required  Package MSL Level: 3 Small Outline Transistor GST: SOT-23-6L Product Description GSB: SOT-89-5L MBI6657 is a step-down constant-current high-brightness LED driver to provide a cost-effective design solution for interior/exterior illumination applications.
