MBI5031 - 16-Channel Constant Current LED Driver

Product Overview

Macroblock

📥 Download Datasheet

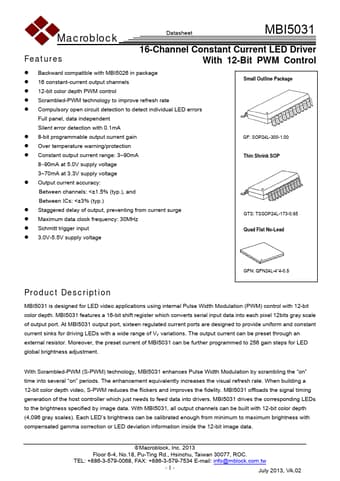

MBI5031 16-Channel Constant Current LED Driver by Macroblock - Datasheet Preview — Datasheet preview – MBI5031

Datasheet Details

Part number	MBI5031
Manufacturer	Macroblock
File Size	525.45 KB
Description	16-Channel Constant Current LED Driver
Datasheet	MBI5031 Datasheet
Additional preview pages of the MBI5031 datasheet.

Product details

Description

MBI5031 is designed for LED video applications using internal Pulse Width Modulation (PWM) control with 12-bit color depth.

Features

Datasheet MBI5031 16-Channel Constant Current LED Driver With 12-Bit PWM Control.
Backward compatible with MBI5026 in package.
16 constant-current output channels.
12-bit color depth PWM control.
Scrambled-PWM technology to improve refresh rate.
Compulsory open circuit detection to detect individual LED errors Full panel, data independent Silent error detection with 0.1mA.
8-bit programmable output current gain.
Over temperature warning/protection.
Con.
