RF-500TB-12560, RF-500TB-14415 Precious metal-brush motors

Description

RF-500TB OUTPUT : 0.01W~2.0W (APPROX) Precious metal-brush motors WEIGHT : 45g (APPROX) Typical Applications Audio and Visual Equipment : CD Player .

📥 Download Datasheet

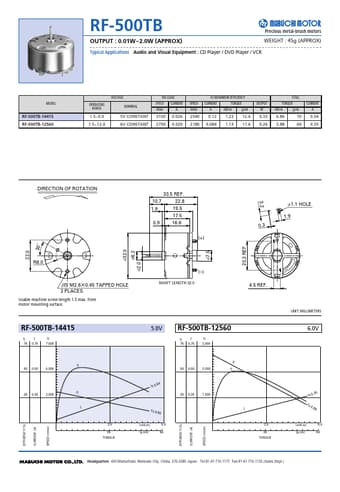

RF-500TB-12560 Datasheet Preview — This datasheet PDF includes multiple part numbers: RF-500TB-12560, RF-500TB-14415. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: RF-500TB-12560, RF-500TB-14415
Manufacturer: Mabuchi
File Size: 59.77 KB
Datasheet: RF-500TB-14415-Mabuchi.pdf
Description: Precious metal-brush motors
Note: This datasheet PDF includes multiple part numbers: RF-500TB-12560, RF-500TB-14415.
Please refer to the document for exact specifications by model.

Applications

* Audio and Visual Equipment : CD Player / DVD Player / VCR MODEL RF-500TB-14415 RF-500TB-12560 OPERATING RANGE VOLTAGE NOMINAL 1.5~9.0 1.5~12.0 5V CONSTANT 6V CONSTANT NO LOAD SPEED CURRENT r/min A 3100 0.026 2700 0.020 SPEED r/min AT MAXIMUM EFFICIENCY CURRENT TORQUE A mN
* m g
* cm
